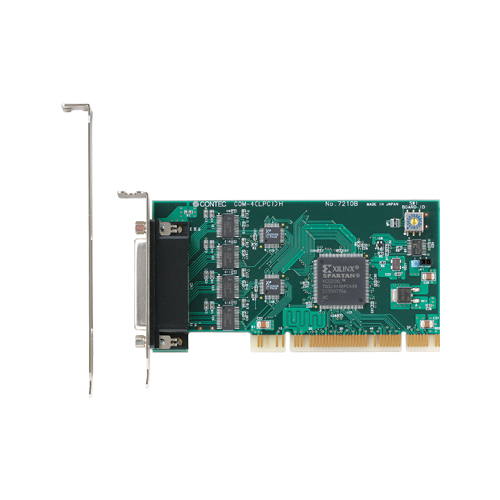

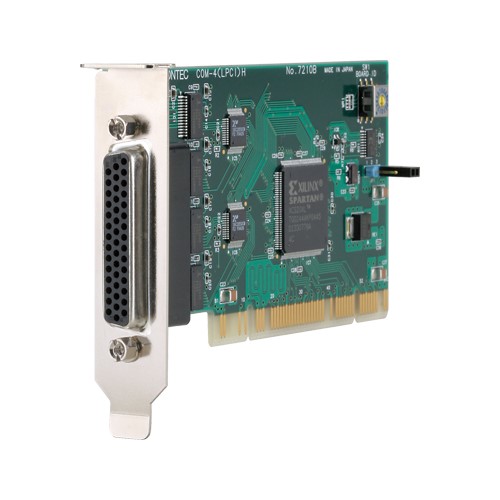

COM-4(LPCI)H 串行通信 Low Profile PCI 总线板卡 RS-232C 4ch

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Max. 921,600bps RS-232C Serial Communication
  • Possibly used as Windows, Linux-standard COM ports, using the bundled driver library
  • Max. 16 cards can be installed as configured in the range COM1 - COM256
  • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive
  • *



型号 产品型号 适应规格
COM-4(LPCI)H 串行通信 Low Profile PCI 总线板卡 RS-232C 4ch
  • CE 欧洲合格认证
  • VCCI


Device Drivers

項目 項目名
API-SIO(98/PC) Serial Communication Driver
IO-LIB General I/O Driver

Development Support Tools

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development


項目 項目名
PCE44/9P2S Divider Shield cable, D-SUB44pin -> 9pin x2 (0.25m) for Serial I/O Card
RSC-9F Cross Cable, RS-232C D-SUB9P(1.8m)
RSS-25M/9F Straight cable for Connector Conversion, RS-232C(25M -> 9F, 1.8m)
RSS-9M/F Straight Cable, RS-232C D-SUB9P(1.8m)


項目 項目名
CN5-D44M 44pin D-SUB (Male) Connector Five-piece Set

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
