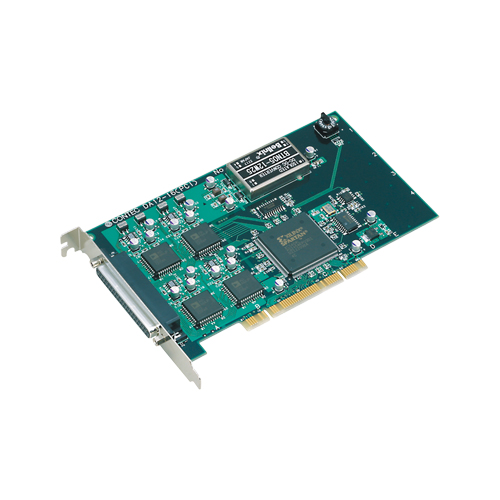

DA12-16(PCI) 模拟量输出 PCI 总线板卡 /16ch 模拟量输出(12bit 100ks/s)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Support for unipolar and bipolar output ranges
  • Two output modes selectable
  • Capable of updating the output voltage using a sampling clock
  • Output-voltage power-on reset function
  • Internal independent programmable timer
  • Independent, TTL-level external trigger input function
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
DA12-16(PCI) 模拟量输出 PCI 总线板卡 /16ch 模拟量输出(12bit 100ks/s)
  • CE 欧洲合格认证
  • VCCI

可选件

Cable

項目 項目名
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
PCC16PS-1.5 Single End Coaxial Cable for 16ch Input(1.5m)
PCC16PS-3 Single End Coaxial Cable for 16ch Input(3m)

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
EPD-37A Screw Terminal (M3 x 37)

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
API-AIO(98/PC) Windows version Analog I/O Driver
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(LNX) Linux General-purpose I/O Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

項目 項目名
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
