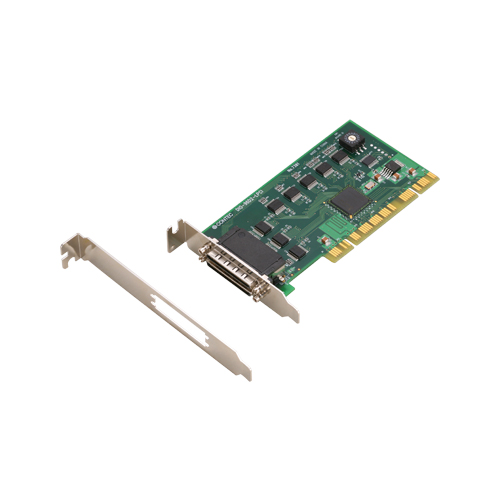

DIO-96D2-LPCI 数字量输入输出 Low Profile PCI总线 板卡 双方向96点 (非绝缘5VDC-TTL)

  • 停产商品
  • 标准保修3年
  • 延长保修可能
  • 修理承接期限 : 2023/02/06



  • This board can be used to input/output 96 points bi-directional digital corresponding to to the equivalence to the i8255 mode 0.
  • You can use up to 96channels of the input signals as interrupt events.
  • This product has a digital filter function to prevent wrong recognition of input signals from carrying noise or a chattering.

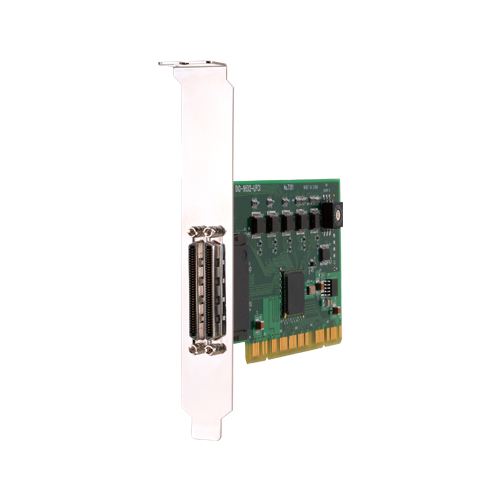

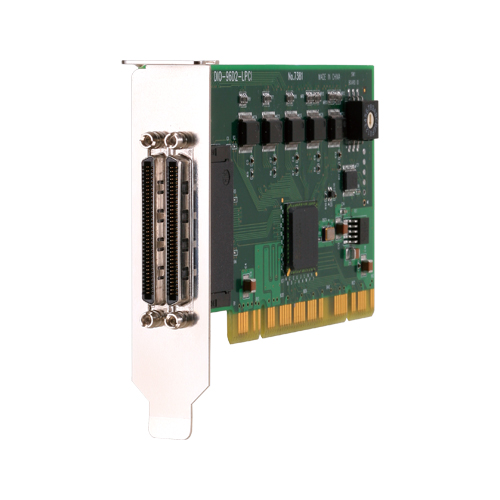

  • Support for both of Low Profile and standard size slots
  • *



产品名称 说明
数字量输入输出 Low Profile PCI Express总线 板卡 双方向96点 (非绝缘3.3VDC-LVTTL)
Bus interface is different but the functions, I/O connector and the connector pin definitions are compatible.


型号 产品型号 适应规格
DIO-96D2-LPCI 数字量输入输出 Low Profile PCI总线 板卡 双方向96点 (非绝缘5VDC-TTL)
  • CE 欧洲合格认证
  • VCCI


Device Drivers

項目 項目名
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver

Development Support Tools

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.


項目 項目名
DIO-68M/96F Shielded Cable for Digital I/O Card for CardBus (0.5m)
PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors


項目 項目名
DTP-64A Screw Terminal (M3 x 96)
EPD-68A Screw Terminal (M3 x 68)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
