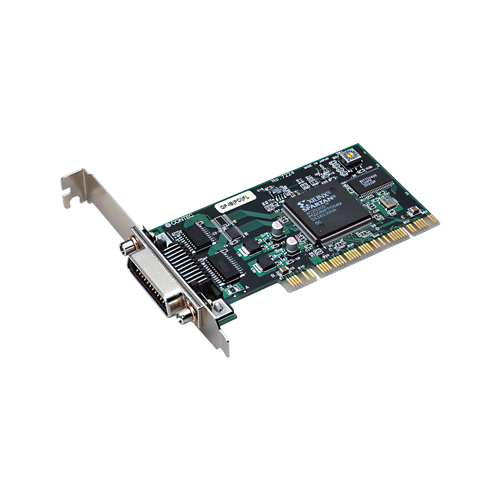

GP-IB(PCI)FL Low Price & High-speed IEEE-488.2 GPIB Interface Board for PCI

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

This product is an interface board of PCI bus conformity equipped with Bus master transfor in accordance with IEEE - 488.1 and IEEE - 488.2. It can perform communication control or data analysis of GPIB bus line of various machinery having GPIB interface with a PC. GPIB communication driver (API-PAC(W32)) for Windows version GPIB communication, LabVIEW Attachment. Using a collection of ActiveX components for measurement system development sold separately[ACX-PAC(W32)], you can more easily develop a higher-performance application in a short term.

• Complies with the IEEE-488.2 standard

  • As the card complies with the IEEE-488.2 standard, you can control any external device that supports this standard.
• Data transfer speed 1.5Mbyte/sec max

  • The maximum data transfer speed for communications is 1.5Mbyte/sec.
• Supports bus master operation

  • The bus master data transfer function enables large quantities of data to be transferred between the board and PC without loading the CPU.
• Internal 2Kbyte FIFO buffers for send and receive

  • The board has separate 2Kbyte FIFO buffers for sending and receiving data, allowing both small and large volumes of data to be transferred at high speed. Interface messages also use a FIFO to enable high-speed transmission.
