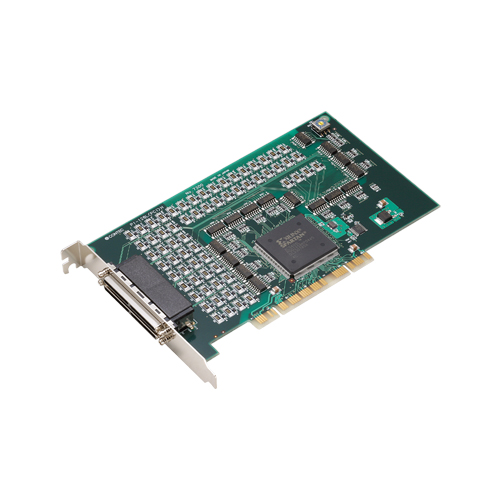

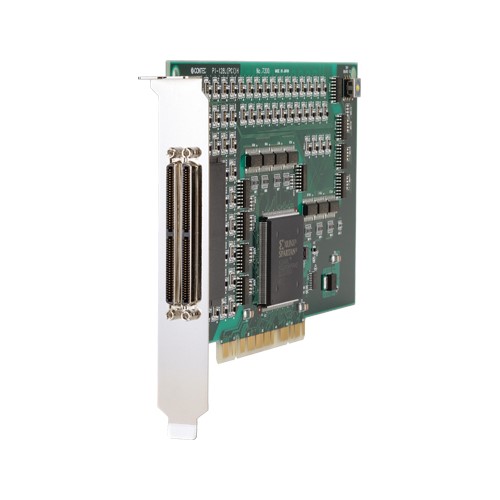

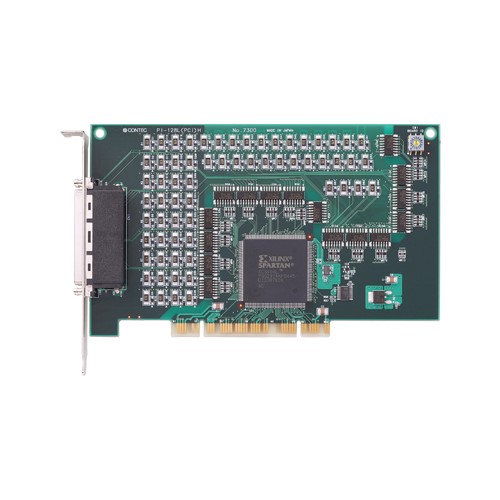

PI-128L(PCI)H 数字量输入 PCI总线 板卡 128点 (光电隔离 12-24VDC)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • A different external power supply can be used for each common pin as it is shared by 16 channels.
  • Opto-coupler used to electrically isolated input signal interface from the PCI bus, offering good noise immunity.
  • Capable of using up to 16 channels of input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
  • Digital filtering that prevents input signal noise and chattering.
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
PI-128L(PCI)H 数字量输入 PCI总线 板卡 128点 (光电隔离 12-24VDC)
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-100A Screw Terminal (M3 x 100)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Expansion Accessory Module

項目 項目名
CM-64L Signal monitor Accessory for Digital I/O

Other Accessories

項目 項目名
CCB-96 Connector conversion board

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

項目 項目名
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
