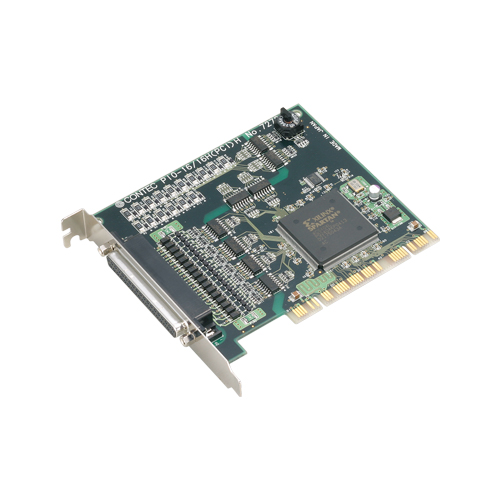

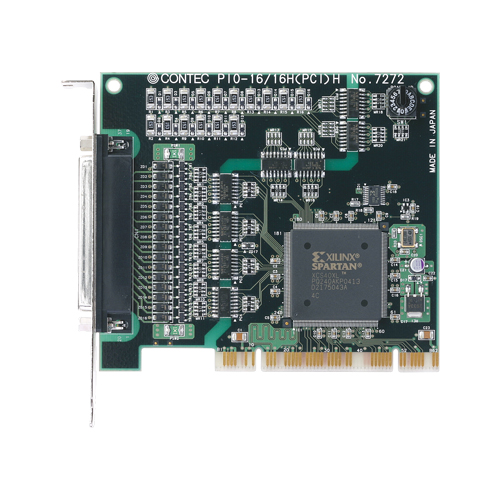

PIO-16/16H(PCI)H 数字量输入输出 PCI总线 板卡 16点/16点 (光电隔离 24-48VDC)

  • 停产商品
  • 标准保修3年
  • 延长保修可能
  • 修理承接期限 : 2019/06/28

览推荐替代产品

※即使在期间内,也会有不能接受修复.

  • Corresponding to the high voltages (24 - 48VDC) I/O.
  • A different external power supply can be used for each common pin as it is shared by 16 channels.
  • The PCI bus (personal computer) and the I/O interface are isolated from each other by an opto-coupler, offering good noise immunity.
  • You can use all of the input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
  • The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs.
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

替代推荐产品

产品名称 说明
数字量输入输出 PCI总线 板卡 32点/32点 (光电隔离 24-48VDC)
PIO-32/32H(PCI)H
I/O functions are compatible but the number of I/O channels and the I/O connector are different.

产品模式与订货型号

型号 产品型号/适应规格
PIO-16/16H(PCI)H 数字量输入输出 PCI总线 板卡 16点/16点 (光电隔离 24-48VDC)
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

項目 項目名
EPD-37 Screw Terminal (M3.5 x 37)

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

項目 項目名
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
