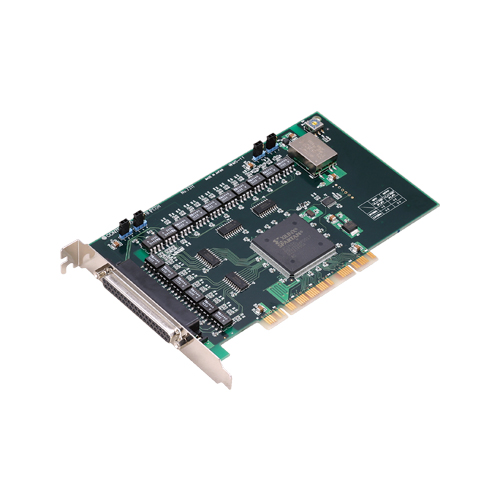

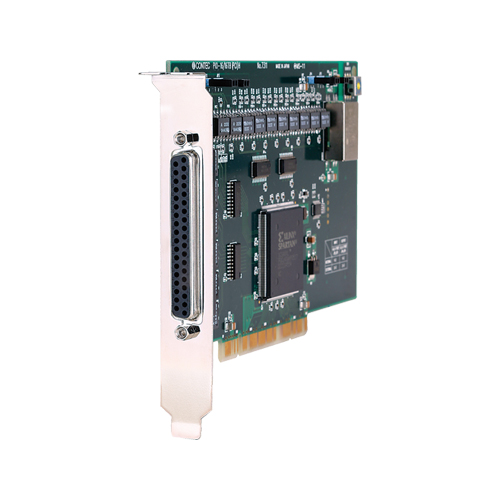

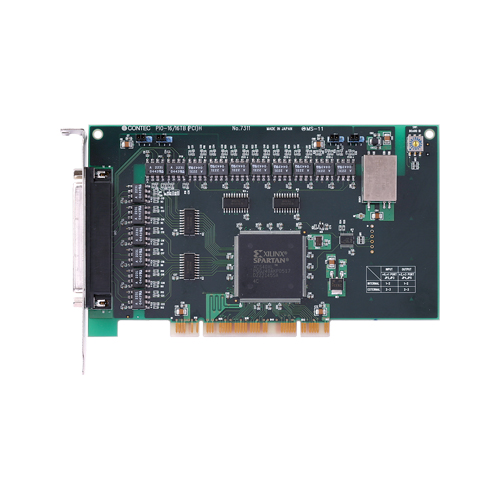

PIO-16/16TB(PCI)H 数字量输入输出 PCI总线 板卡 16点/16点 (板载5VDC电源 高速光电隔离5VDC-TTL)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Noise-protection nature is improving by Opto-isolated input and output
  • Signal arrangement of a connector is same as PIO-16/16TB(PCI), and compatibility
  • It can input 16 points TTL level digital signal
  • It can output 16 points TTL level digital signal
  • All the 16 input signals can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen. It has the digital filter function in which the noise and chattering of an input signal can be prevented
  • The power supply for a photo-coupler drive is built in. Moreover, selection of a built-in power supply (5VDC, 600mA) / external power supply is possible
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
PIO-16/16TB(PCI)H 数字量输入输出 PCI总线 板卡 16点/16点 (板载5VDC电源 高速光电隔离5VDC-TTL)
  • CE 欧洲合格认证
  • VCCI

可选件

Expansion Accessory Module

項目 項目名
CM-32L Signal monitor Accessory for Digital I/O

Cable

項目 項目名
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
