PIO-32/32H(PCI)H 数字量输入输出 PCI总线 板卡 32点/32点 (光电隔离 24-48VDC)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • PIO-3232H(PCI)H_rgb_96dpi_500x500モーダルで開く
  • PIO-3232H(PCI)H_conn_rgb_96dpi_500x500モーダルで開く

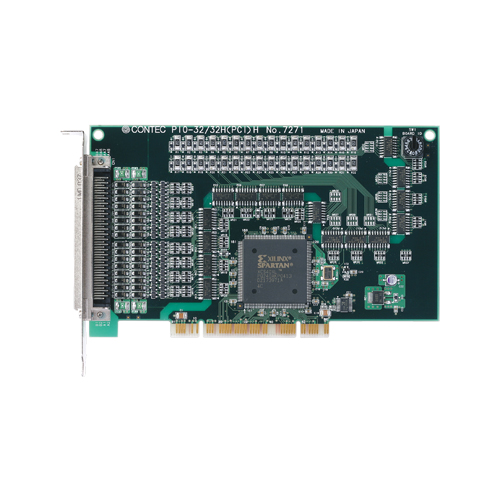

  • PIO-3232H(PCI)H_up_rgb_96dpi_500x500モーダルで開く
  • Corresponding to the high voltages (24 - 48VDC) I/O.
  • A different external power supply can be used for each common pin as it is shared by 16 channels.
  • The PCI bus (personal computer) and the I/O interface are isolated from each other by an opto-coupler, offering good noise immunity.
  • You can use 32 signal channels of the input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
  • The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs.
  • Up to 60 VDC, 100 mA per signal, max. output. Zener diode connected to output transistors for protection from surge voltage. Overcurrent protective device provided for every eight channels of output transistors.
  • *
    有关延长保修的详细信息，请与我们联系。

概要・特点

This board is a PCI bus-compliant interface board for input/output of digital signals. The board can input and output digital signals at 24 - 48VDC. PIO-32/32H(PCI)H can input and output up to 32 channels. With the Windows version, the Linux version driver (API-PAC(W32)).

  • Corresponding to the high voltages (24 - 48VDC) I/O.
  • A different external power supply can be used for each common pin as it is shared by 16 channels.
  • The PCI bus (personal computer) and the I/O interface are isolated from each other by an opto-coupler, offering good noise immunity.
  • You can use 32 signal channels of the input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
  • The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs.
  • Up to 60 VDC, 100 mA per signal, max. output. Zener diode connected to output transistors for protection from surge voltage. Overcurrent protective device provided for every eight channels of output transistors.
