PIO-32/32L(PCI)H 数字量输入输出 PCI总线 板卡 32点/32点 (光电隔离 12-24VDC)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • pio-3232l(pci)h_rgb_96dpi_500x500モーダルで開く

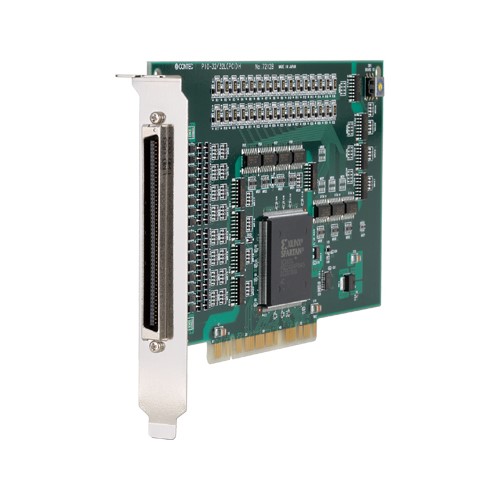

  • pio-3232l(pci)h_conn_rgb_96dpi_500x500モーダルで開く

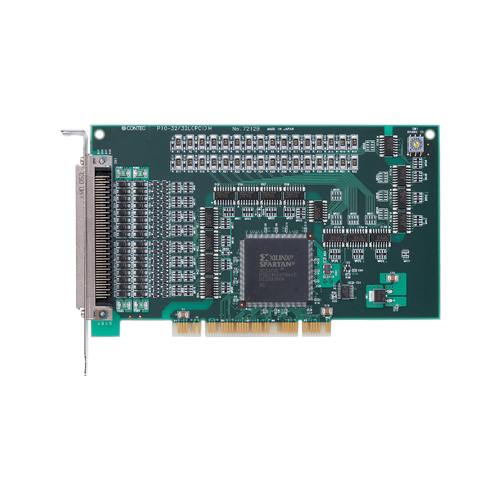

  • pio-3232l(pci)h_up_rgb_96dpi_500x500モーダルで開く
  • The input of a maximum of 32 points and the output of a maximum of 32 points can be performed on this one board. Because of the common composition of a 16-point unit, each common line can respond to a different external power supply.
  • Since the PCI bus (personal computer) and the input/output interface are isolated by the photo-coupler, it excels in noise-protection nature.
  • It can interrupt and 32 points of an input signal can be used as an input. Moreover, the edge of the input signal can also generates interruption.
  • It has the digital filter function for preventing the incorrect input by the noise or the chatering.
  • The rating of an output signal is a maximum of 35 VDC and 100mA per point. Zener diode is connected to an output transistor for protection from surge voltage. Moreover, the over-current protection element is attached per eight output transistors.
  • *
    有关延长保修的详细信息，请与我们联系。

概要・特点

This product is the interface board of the PCI bus conformity which outputs and inputs a digital signal. The digital signal of 12 to 24VDC can be outputted and inputted. The input of a maximum of 32 points and the output of a maximum of 32 points can be performed on this one board. The driver (API-PAC(W32)) for Windows and Linux appending.

  • The input of a maximum of 32 points and the output of a maximum of 32 points can be performed on this one board. Because of the common composition of a 16-point unit, each common line can respond to a different external power supply.
  • Since the PCI bus (personal computer) and the input/output interface are isolated by the photo-coupler, it excels in noise-protection nature.
  • It can interrupt and 32 points of an input signal can be used as an input. Moreover, the edge of the input signal can also generates interruption.
  • It has the digital filter function for preventing the incorrect input by the noise or the chatering.
  • The rating of an output signal is a maximum of 35 VDC and 100mA per point. Zener diode is connected to an output transistor for protection from surge voltage. Moreover, the over-current protection element is attached per eight output transistors.
