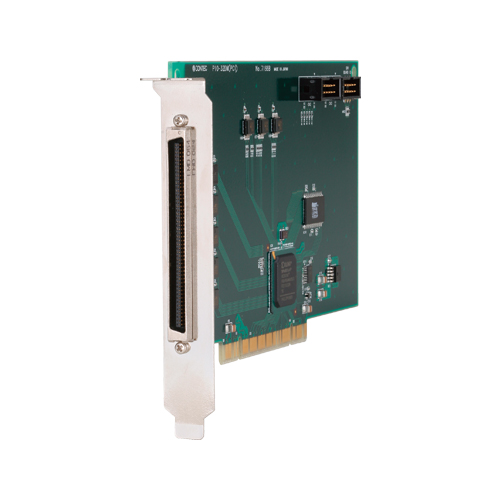

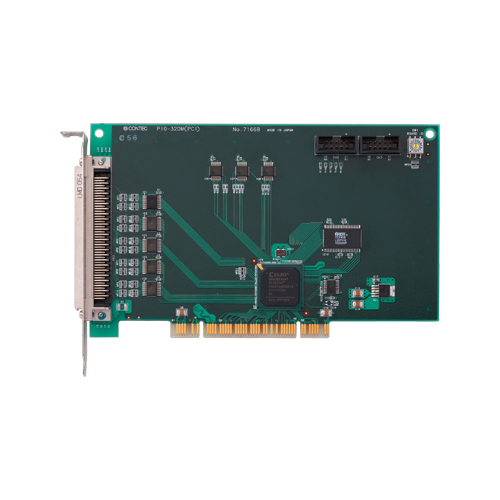

PIO-32DM(PCI) 数字量输入输出 PCI总线 板卡 双方向32点 (高速非绝缘5VDC-TTL)

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

It is used on external equipment and the interface board of the PCI bus conformity which performs digital input and output by bus master transmission, mounting in the PCI bus expansion slot of the main part of a personal computer. The digital signal of a TTL level can use an input and 32 outputs in all. With the Windows version driver (API-PAC(W32)).

• 32 input-and-output point (selection of 32 inputs, 16 input and output each, and 32 outputs is possible)
• When bus master transmission is used, continuation input and output of a series etc. are possible (a maximum of 20MHz).
• A synchronous bus connector is used and two or more boards a simultaneous input / output are possible (synchronous cable standard appending).
