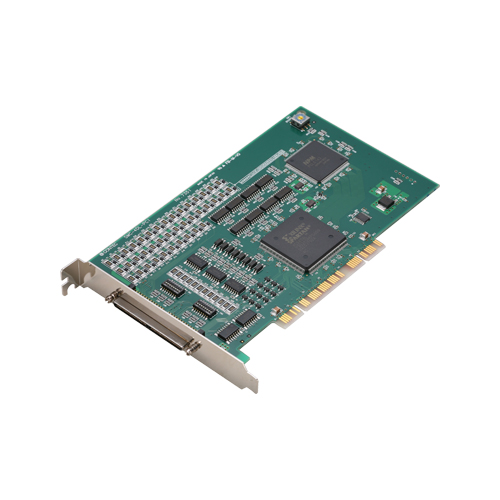

SMC-4DL-PCI High-speed line driver output 4 axis motion control board for PCI

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Capable of multi-axis independent control and pulse output up to 9.8Mpps
  • Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning,and origin returning
  • Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
  • With the multi-axis synchronization control function,capable of aligning the timing for operation start and end
  • Capable of speed and position overriding
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
SMC-4DL-PCI High-speed line driver output 4 axis motion control board for PCI
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors

Terminal

項目 項目名
EPD-100A Screw Terminal (M3 x 100)

Other Accessories

項目 項目名
CCB-SMC2 Conversion terminal for SMC series

Software Development Kit

項目 項目名
API-SMC(WDM) Motion Control Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
