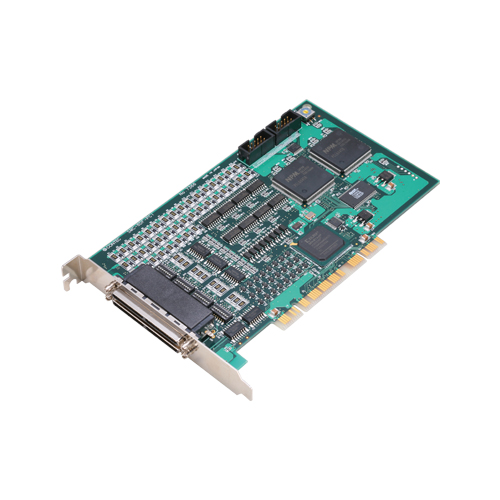

SMC-8DF-PCI 8 axis high-speed line driver output motion control board for PCI(high-performance version)

  • 停产商品
  • 标准保修3年
  • 延长保修可能
  • 修理承接期限 : 2021/12/24

览推荐替代产品

※即使在期间内,也会有不能接受修复.

  • Capable of multi-axis independent control and pulse
  • Capable of various control operations such as positioning,linear/circular interpolation, frame continuous operations,synchronization control, and so on
  • Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
  • Capable of storing positioning information up to 1024 frames for each axis and control without extra CPU load
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

替代推荐产品

产品名称 说明
High-Speed Motion Control Board for PCI (8 axes)
SMC-8DF2-PCI
Upgrade product. The functions and I/O connectors are compatible. Please refer the manual for details.

产品模式与订货型号

型号 产品型号/适应规格
SMC-8DF-PCI 8 axis high-speed line driver output motion control board for PCI(high-performance version)
  • CE 欧洲合格认证
  • VCCI

可选件

Cable

項目 項目名
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors

Terminal

項目 項目名
EPD-100A Screw Terminal (M3 x 100)

Other Accessories

項目 項目名
CCB-SMC2 Conversion terminal for SMC series

Software Development Kit

項目 項目名
API-SMC(WDM) Motion Control Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
