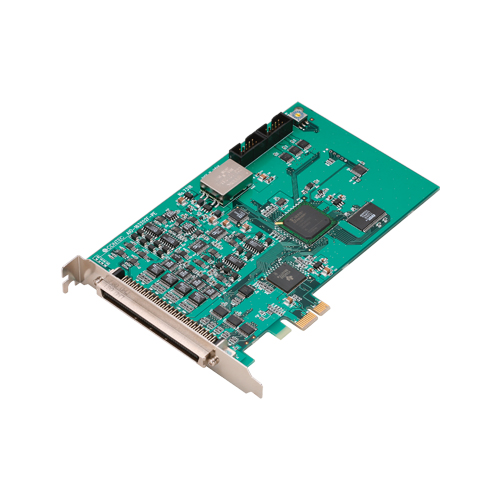

AIO-163202F-PE 模拟量输入输出 PCI Express 总线板卡 / 32ch 模拟量输入(16bit 500ks/s) / 2ch 计数器 - 多功能DAQ F系列

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Multi-function
  • Buffer memory available for background processing independent of software
  • Software-based calibration function
  • Equipped with the synchronization control function
  • Filter function for easy connection of external signals
  • Supported to the data logger software [C-LOGGER]
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
AIO-163202F-PE 模拟量输入输出 PCI Express 总线板卡 / 32ch 模拟量输入(16bit 500ks/s) / 2ch 计数器 - 多功能DAQ F系列
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

項目 項目名
ATP-32F BNC Connectors for Analog I/O Board
ATP-8 BNC Connector Accessory for Analog I/O Board
DTP-64A Screw Terminal (M3 x 96)
EPD-96 Screw Terminal (M3.5 x 96)

Expansion Accessory Module

項目 項目名
ATBA-32F Buffer Amplifier Function Extension Box for analog input board
ATBA-8F Buffer Amplifier Function Extension Box for analog input board

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
API-TIMER(W32) Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

項目 項目名
ML-DAQ MATLAB compliant Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW

Application software

項目 項目名
C-LOGGER Data Logger Software for Windows

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
