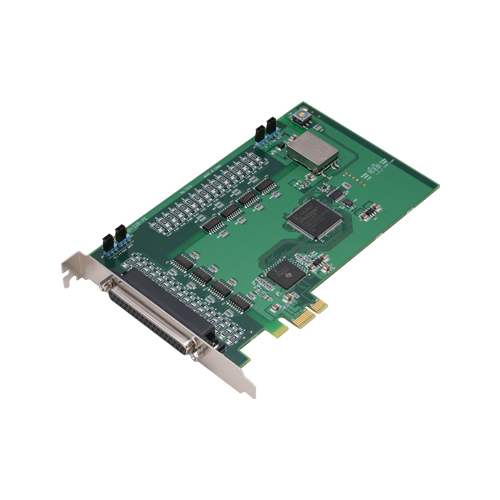

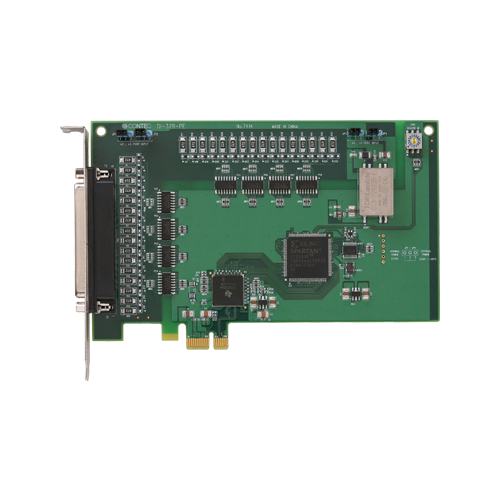

DI-32B-PE 数字量输入 PCI Express总线 板卡 32点 (板载12VDC电源 光电隔离 12-24VDC)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Opto-coupler isolated input (compatible with current sink output)
  • Opto-coupler bus isolation
  • Power for opto-coupler operation (12VDC 240mA) supplied internally
  • You can use all of the input signals as interrupt request signals.
  • Windows/Linux compatible driver libraries are attached.
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
DI-32B-PE 数字量输入 PCI Express总线 板卡 32点 (板载12VDC电源 光电隔离 12-24VDC)
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Expansion Accessory Module

項目 項目名
CM-32L Signal monitor Accessory for Digital I/O

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver

Library Software

項目 項目名
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
