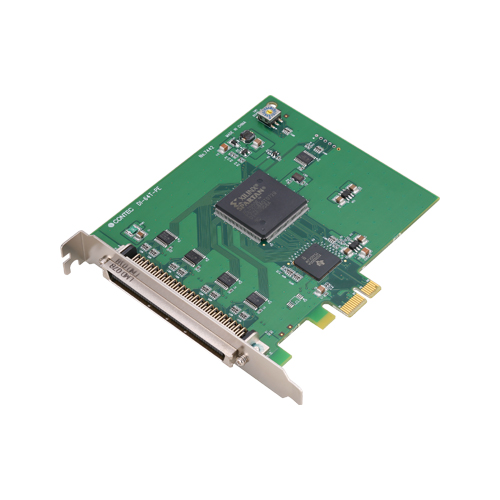

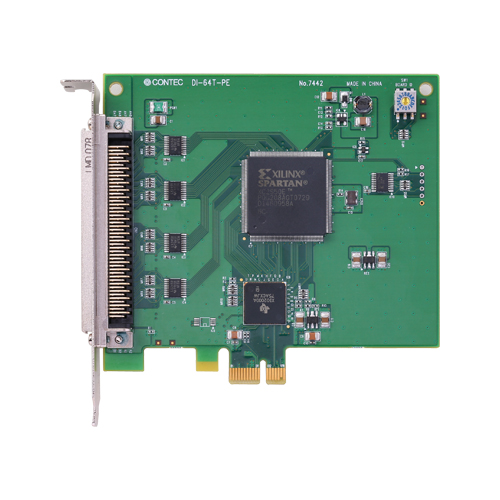

DI-64T-PE 数字量输入 PCI Express总线 板卡 64点 (非绝缘5VDC-TTL)

  • 停产商品
  • 标准保修3年
  • 延长保修可能
  • 修理承接期限 : 2022/06/30

览推荐替代产品

※即使在期间内,也会有不能接受修复.

  • Unisolated TTL level input
  • You can use 32 input signals as interrupt request signals.
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
  • Windows/Linux compatible driver libraries are attached.
  • Functions and connectors are compatible with PCI compatible board DI-64T2-PCI
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

替代推荐产品

产品名称 说明
数字量输入 PCI Express总线 板卡 32点 (非绝缘5VDC-TTL)
DI-32T-PE
The number of input channels is one-second of the PI-64T-PE. The I/O connector and the connector-pin definitions are different.

产品模式与订货型号

型号 产品型号/适应规格
DI-64T-PE 数字量输入 PCI Express总线 板卡 64点 (非绝缘5VDC-TTL)

可选件

Cable

項目 項目名
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Expansion Accessory Module

項目 項目名
CM-32L Signal monitor Accessory for Digital I/O
CM-64L Signal monitor Accessory for Digital I/O

Other Accessories

項目 項目名
CCB-96 Connector conversion board

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver

Library Software

項目 項目名
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
