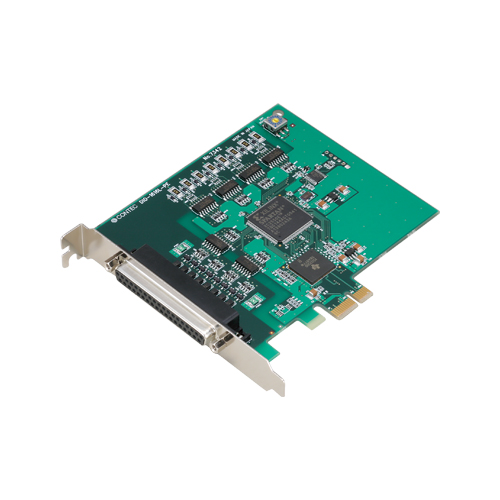

DIO-1616L-PE 数字量输入输出 PCI Express总线板卡 16点/16点 (光电隔离 12-24VDC)

Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
Opto-coupler bus isolation
You can use all of the input signals as interrupt events.
Windows/Linux compatible driver libraries are attached.
This product has a digital filter to prevent input signals from carrying noise or a chattering.
Output circuits include zener diodes for surge voltage protection and overcurrent protection circuit.

订购信息・选件

型号	产品型号	适应规格
DIO-1616L-PE	数字量输入输出 PCI Express总线板卡 16点/16点 (光电隔离 12-24VDC)

項目	項目名
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver
API-TIMER(W32)	Timer Driver
API-TIMER(WDM)	Windows Driver for Timer Driver
IO-LIB(WDM)	Windows General-purpose I/O Driver

項目	項目名
ACX-PAC(W32)	ActiveX components sets for measurement system development
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN	LabVIEW Data Acquisition Library
VI-DAQ	VI Library of data acquisition for LabVIEW

項目	項目名
CM-32L	Signal monitor Accessory for Digital I/O

項目	項目名
PCA37P	37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P	A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P	37pin D-type(M) at Each End, Flat Cable
PCB37PS-P	37pin D-type(M) at Each End, Shield Cable
