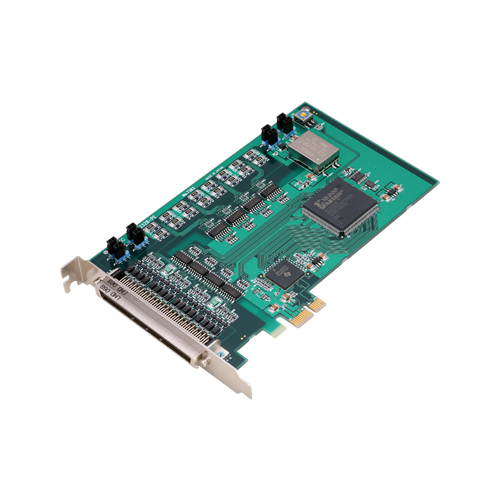

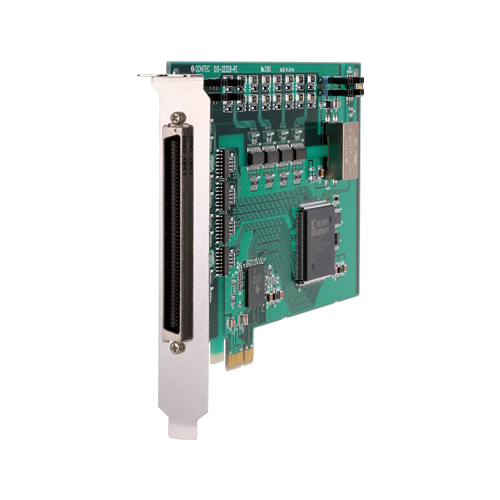

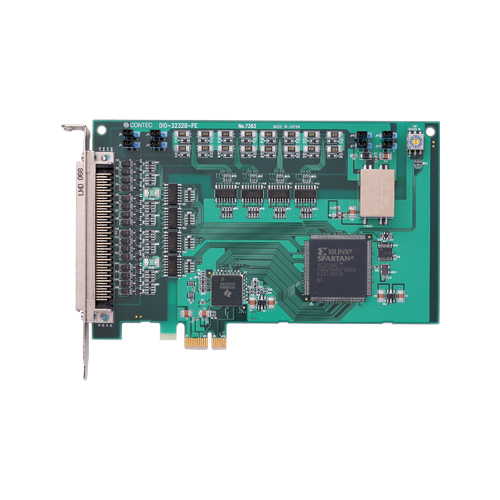

DIO-3232B-PE 数字量输入输出 PCI Express总线 板卡 32点/32点 (板载12VDC电源 光电隔离 12-24VDC)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
  • Opto-coupler bus isolation
  • Power supply (12VDC 240mA) for driving opto-coupler
  • You can use all of the input signals as interrupt request signals.
  • The output circuit, has a built-in Zener diode and the overcurrent protection circuit of the surge voltage protection.
  • Windows/Linux compatible driver libraries are attached.
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
DIO-3232B-PE 数字量输入输出 PCI Express总线 板卡 32点/32点 (板载12VDC电源 光电隔离 12-24VDC)
  • CE 欧洲合格认证
  • VCCI

可选件

Expansion Accessory Module

項目 項目名
CM-32L Signal monitor Accessory for Digital I/O
CM-64L Signal monitor Accessory for Digital I/O

Cable

項目 項目名
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
PCB96WS-P 96pin Half-Pitch to 2 x 37pin D-type(M), Shield Cable

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-37A Screw Terminal (M3 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Other Accessories

項目 項目名
CCB-96 Connector conversion card

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
