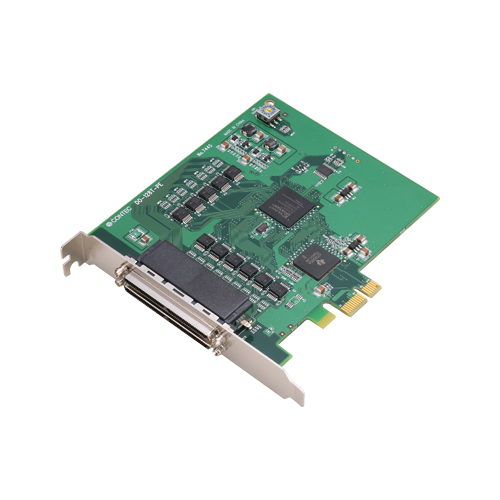

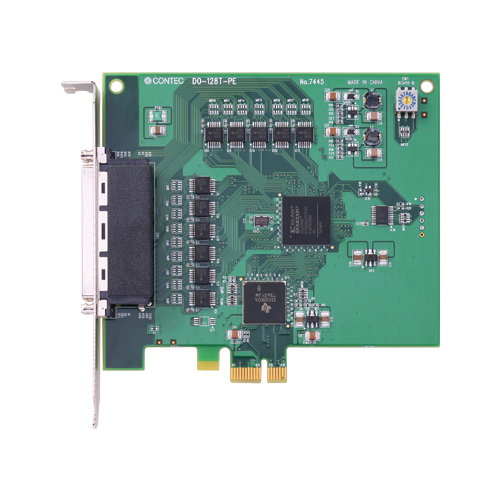

DO-128T-PE 数字量输出 PCI Express总线板卡 128点 (非绝缘5VDC-TTL)

停产商品

标准保修3年
延长保修可能

修理承接期限 : 2022/06/30

览推荐替代产品

※即使在期间内，也会有不能接受修复．

Unisolated open-collector output
Windows/Linux compatible driver libraries are attached.
Functions and connectors are compatible with PCI compatible card DO-128T2-PCI
LabVIEW is supported by a plug-in of dedicated library VI-DAQ.

*
有关延长保修的详细信息，请与我们联系。

支持的操作系统

订购信息・选件

替代推荐产品

产品名称	说明
数字量输出 PCI Express总线板卡 32点 (非绝缘5VDC-TTL) DO-32T-PE	The number of output channels is one-fourth of the PO-128T-PE. The I/O connector and the connector-pin definitions are different.

产品模式与订货型号

型号	产品型号	适应规格
DO-128T-PE	数字量输出 PCI Express总线板卡 128点 (非绝缘5VDC-TTL)

可选件

Device Drivers

項目	項目名
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver
API-TIMER(W32)	Timer Driver

Development Support Tools

項目	項目名
ACX-PAC(W32)	ActiveX components sets for measurement system development
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
VI-DAQ	VI Library of data acquisition for LabVIEW

Expansion Accessory Module

項目	項目名
CM-32L	Signal monitor Accessory for Digital I/O
CM-64L	Signal monitor Accessory for Digital I/O

Cable

項目	項目名
PCA100P	100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS	96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS	Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS	37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

項目	項目名
DTP-3A	Screw Terminal (M3 x 37)
DTP-4A	Screw Terminal (M2.6 x 37)
DTP-64A	Screw Terminal (M3 x 96)
EPD-100A	Screw Terminal (M3 x 100)
EPD-37	Screw Terminal (M3.5 x 37)
EPD-96	Screw Terminal (M3.5 x 96)
EPD-96A	Screw Terminal (M3 x 96)

其他配件

項目	項目名
CCB-96	Connector conversion card

Extended Warranty Service

項目	項目名
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
