概要・特点

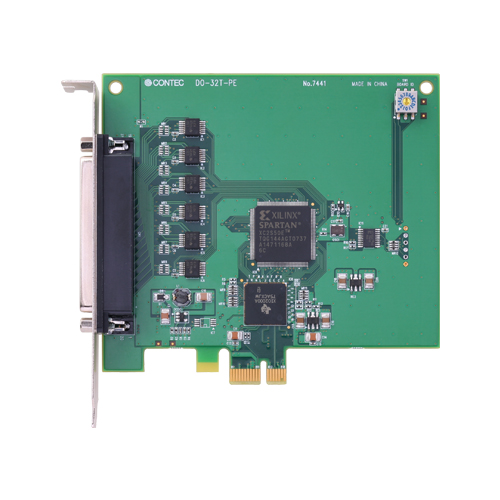

This product is a PCI Express bus-compliant interface card used to provide a digital output function on a PC. It features 32 unisolated open-collector outputs. Windows/Linux driver is bundled with this product. Possible to be used as a data recording device for LabVIEW, with dedicated libraries. You can develop a high application in a short term if You use collection of ActiveX components ACX-PAC(W32) for option software.
-
Unisolated open-collector output
- It has the 32ch of unisolated open-collector output whose response speed is 200nsec. The output rating is max. 30VDC, 40mA per ch.
-
Windows/Linux compatible driver libraries are attached.
- Using the attached driver library API-PAC(W32) makes it possible to create applications of Window/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
-
Functions and connectors are compatible with PCI compatible card DO-32T2-PCI.
- The functions same with PCI compatible card DO-32T2-PCI are provided. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.
-
- Using the dedicated library VI-DAQ makes it possible to make a LabVIEW application.
