概要・特点

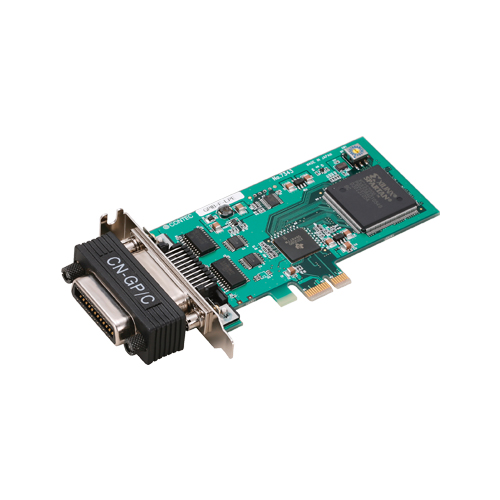

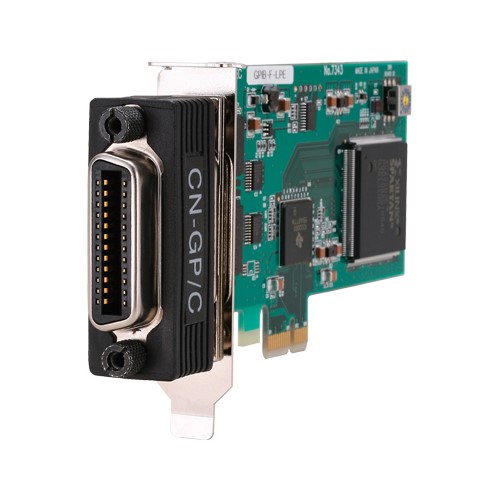

This product is a PCI Express bus-compatible interface board with support for bus master operation and which complies with IEEE-488.1 and IEEE-488.2. This product can be used in a PC to control communications with devices that support the GPIB interface and read GPIB bus line data.
This product supports a low-profile size slot and, if replaced with the supplied bracket, supports a standard size slot, too. Windows/LabVIEW device driver is supported with this product.
-
Capable to communicate with GPIB communication which is compatible to IEEE-488.1/488.2 standards at 1.5 M byte/sec maximum
- Capable to communicate with any equipment which is compatible to IEEE-488.1/488.2 standards with transfer rate at 1.5 Mbyte/sec maximum. Capable to set this product to whether a master (controller) or a slave.
-
Supports bus master operation
- The bus master data transfer function enables large quantities of data to be transferred between the board and PC without loading the CPU.
-
Employs a buffer memory, 2Kbytes for transmission and 2 Kbytes for reception
- Employs a buffer memory, 2 Kbytes dedicated to transmission and 2Kbytes dedicated to reception, in order to reduce the load to the CPU when transmitting/receiving data.
-
Employs a high speed GPIB controller developed by CONTEC and provides steady-supply
- This product employs CONTEC's self-developed high speed GPIB controller (μPD7210 register-compatible), which provides users steady-supply with peace of mind.
-
Support for both of Low Profile and standard size slots
- Support for both of Low Profile and standard size slots (interchangeable with a bundled bracket).
-
Windows/LabVIEW compatible support software is offered
- The support software offered on the CONTEC website makes it possible to create applications of Windows/LabVIEW. In addition, supplies a diagnostic program to confirm hardware operation and to perform a basic communication test with connected equipment.
