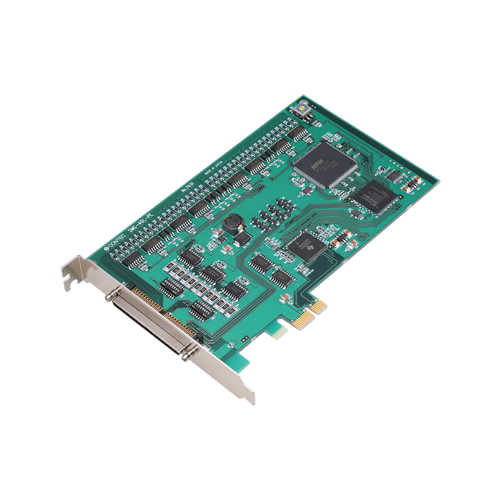

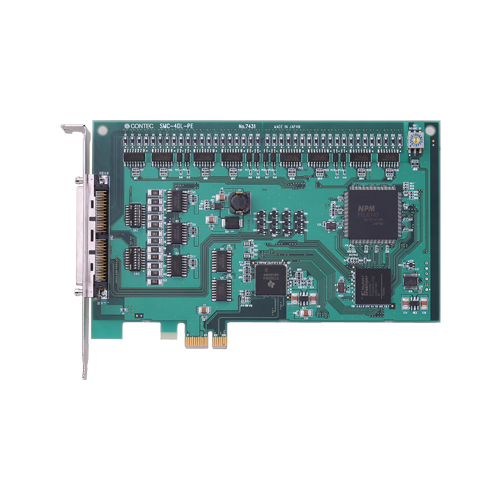

SMC-4DL-PE High-speed line driver output 4-Axis Motion Controller Card for PCI Express

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Capable of multi-axis independent control and pulse output up to 9.8Mpps
  • Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning, and origin returning
  • Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit.
  • With the multi-axis synchronization control function, capable of aligning the timing for operation start and end
  • Capable of speed and position overriding
  • Comparator circuits allowing the set value and counter value to be compared
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号 适应规格
SMC-4DL-PE High-speed line driver output 4-Axis Motion Controller Card for PCI Express
  • CE 欧洲合格认证
  • VCCI

可选件

设备驱动程序

項目 項目名
API-SMC(LNX) Linux Driver for Motion Control
API-SMC(WDM) Motion Control Driver
API-TIMER(W32) Timer Driver

电缆

項目 項目名
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors

终端

項目 項目名
EPD-100A Screw Terminal (M3 x 100)

其他配件

項目 項目名
CCB-SMC2 Conversion terminal for SMC series

延长保修服务

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
