AIO-163202FX-USB 模拟量输入输出 USB I/O单元 / 32ch 模拟量输入(16bit 500ks/s) / 2ch 计数器 - 多功能DAQ F系列

  • 标准保修1年
  • 延长保修可能

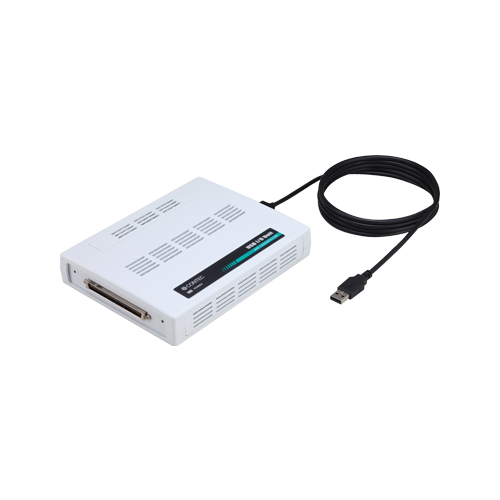

  • aio-163202fx-usb_rgb_96dpi_500x500モーダルで開く
  • Multi-function
  • The event controller can be used to implement a wide range of different sampling control schemes
  • Buffer memory for 128K of data available for background processing
  • USB HUB function, the CONTEC’s USB supported products (Max. 4) can be used.
  • Compatible with PCI / PCI Express bus board and Card Bus PC card in it’s design. Common connector shape and pin assignment with PCI / PCI Express bus board and Card Bus PC card.
  • Data logger software, Windows compatible driver libraries are provided.
  • *
    有关延长保修的详细信息，请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号 适应规格
AIO-163202FX-USB 模拟量输入输出 USB I/O单元 / 32ch 模拟量输入(16bit 500ks/s) / 2ch 计数器 - 多功能DAQ F系列
  • CE 欧洲合格认证
  • VCCI

可选件

Device Drivers

項目 項目名
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver

Development Support Tools

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
ML-DAQ MATLAB compliant Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW

Applications

項目 項目名
C-LOGGER Data Logger Software for Windows
C-WaveformGenerator Waveform Generator for Windows

Expansion Accessory Module

項目 項目名
ATBA-32F Buffer Amplifier Function Extension Box for analog input card
ATBA-8F Buffer Amplifier Function Extension Box for analog input card

Cable

項目 項目名
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)

Terminal

項目 項目名
ATP-32F BNC Connectors for Analog I/O Card
ATP-8 BNC Connector Accessory for Analog I/O Card
DTP-64A Screw Terminal (M3 x 96)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Power Supply / AC Adapter

項目 項目名
POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)
POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A

其他配件

項目 項目名
BRK-USB-X USB I/O Unit Bracket for X series
