AO-1604VIN-USB 模拟量输出USB I/O单元 / 4ch (16bit 100ks/s) / 总线隔离 - N系列

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

This product is an analog output unit supporting USB2.0 to provide the output function of analog signal from USB port on the computer. 4 channels of 16-bit analog output, and digital input and output (4 channels respectively) are equipped, and these circuits are isolated from the computer. The analog output range supports voltage output ±10V. The compact design, (188.0(W)×78.0(D)×30.5(H)mm), features flexibility in installation. The product can be set on the floor, wall, and inside the console or equipment with the DIN rail.

• 4-ch of high precision analog output (voltage output), 4-ch of digital input and 4-ch of digital output

  • Analog output (10μs, 16-bit, 4-ch), digital input (TTL level 4-ch) and digital output (TTL level 4-ch) functions are equipped. The analog output range is ± 10V.
• Buffer memory that can be used in FIFO or RING format is equipped.

  • Buffer memory (8K data) that can be used in FIFO or RING format is equipped. It is possible to perform analog output in the background, independent of software and computer operating states.
• Various trigger conditions, sampling clocks

  • The start and end of sampling can be performed by various triggers such as software and external (timing of control signal input from the outside). The sampling period can be selected from internal clock (high-precision timer mounted in the unit) and external clock (control signal input from the outside).
• Installed with software calibration function

  • Calibration of analog output can be all performed by software. Apart from the adjustment information prepared before shipment, additional adjustment information can be stored according to the use environment.

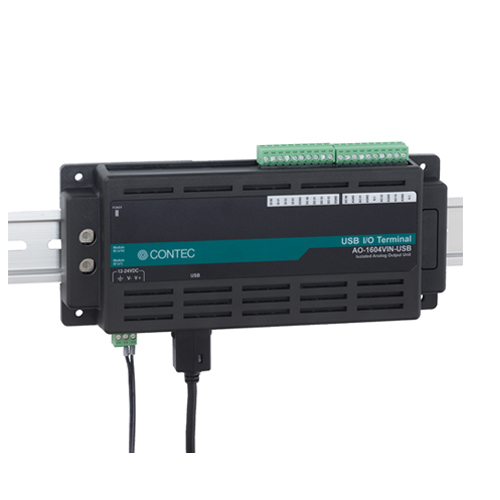

• Various mounting methods such as screwing, magnets (optional), DIN rail etc are possible.

  • It can be installed on the floor / wall / ceiling etc. with screw fastening, magnets (sold separately), rubber feet etc. In addition, since the DIN rail attachment mechanism is equipped as standard on the unit, it can be easily installed inside the panel or in the device.
• Compact design not restricting installation location (188.0(W) x 78.0(D) x 30.5(H))

  • Compact design of 188.0(W) x 78.0(D) x 30.5(H) does not require special installation location.
