CAN-2-USB CAN2.0B 通信 USB 转换器单元 2ch

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

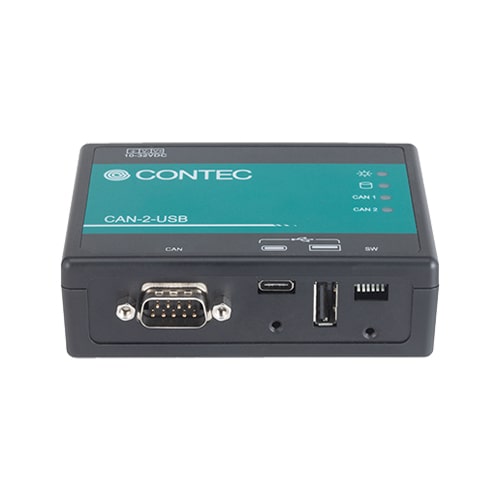

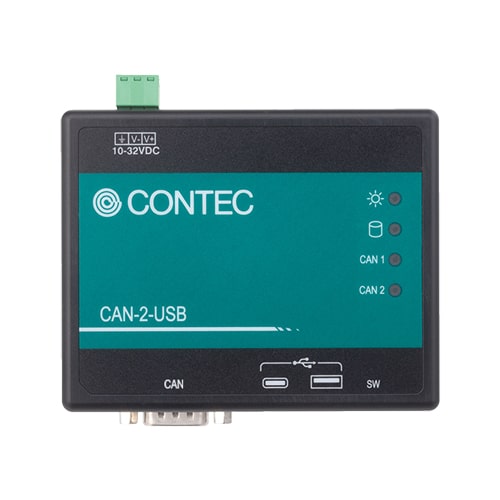

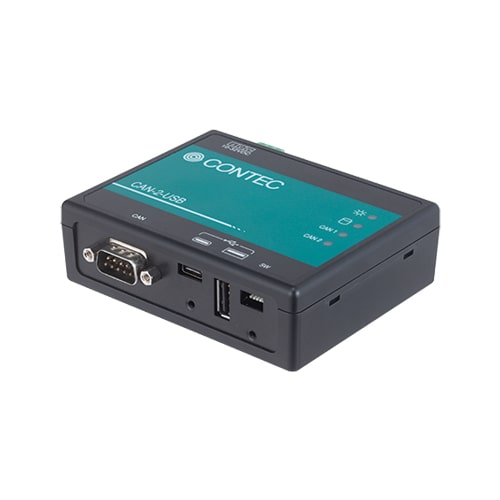

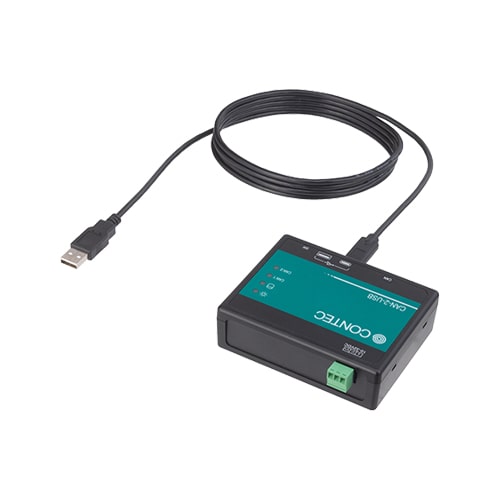

This product is a CAN/USB converter unit that connects to a PC USB port and expands the CAN communication function. It is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps. And includes a USB Type-C port that can operate using the bus power from the host. Windows driver is supported with this product.

• CAN communication function

  • This product can expand the 2-channel CAN communication function to a PC. This product is compliant with CAN2.0B communication, supporting communication speeds of up to 1Mbps. Each channel is controlled by an individual CAN controller, allowing each channel to communicate independently of the status of other channels.
• Compatible to USB1.1/USB2.0 and bus power-driven eliminating the need for external power

  • Compatible to USB1.1/USB2.0 and capable to achieve high speed transfer at High Speed (480 Mbps). The product is driven by bus power from USB, which eliminates the need for external power.
• Includes a separate send/receive buffer for each channel

  • A separate 16 message FIFO buffer for sending and receiving is provided at each channel.
• Capable of adapting a wide-range power (10 - 32VDC)

  • The product is capable of dealing with a wide range of power in the differing environments. Power connector also has a FG terminal.
• Terminating Resistor Function within

  • The terminating resistor of each channel can be enabled/disabled using the DIP switch on the unit.
• Provide device drivers compatible with Windows

  • Windows applications can be created by using the device driver API-TOOL provided on our website.
