DI-32(USB) 数字量输入 USB 模块 32点 (光电隔离 12-24VDC)

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

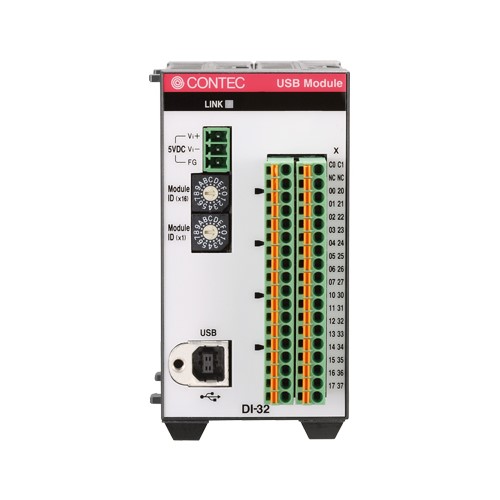

DI-32(USB) is a USB 2.0 compliant module that extends the digital signal Input functions of a PC. DI-32(USB) has 32 opto-isolated input channels for 12 - 24VDC. Using expansion modules, the number of Input channels can be extended. In addition, this product can be directly attached onto 35-mm DIN rails for embedded applications. Windows driver is bundled.

• Opto-coupler bus isolation

  • As the USB (PC) is isolated from the input interfaces by opto-couplers, this product has excellent noise performance.
• Trigger monitor function integrated

  • The CPU inside the module can report status changes (rise and fall) to the host in a minimum cycle of 1ms.
• Easy to increase the number of input channels using an expansion module

  • Adding optional modules (up to 3 units) can easily increase the number of input channels. The unique structure for connection by stacking enables easy and compact system configuration.
• Screw-less connector plug facilitating wiring and plugging/unplugging

  • Wiring and plugging/unplugging are easy as the screw-less connector plug is used.
• Capable of being mounted on 35-mm DIN rails

  • The module is equipped with an attachment for mounting on 35-mm DIN rails on the back, allowing the module to be attached onto and detached from DIN rails.
