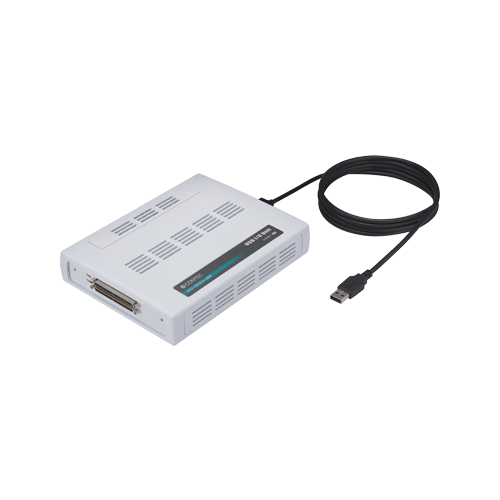

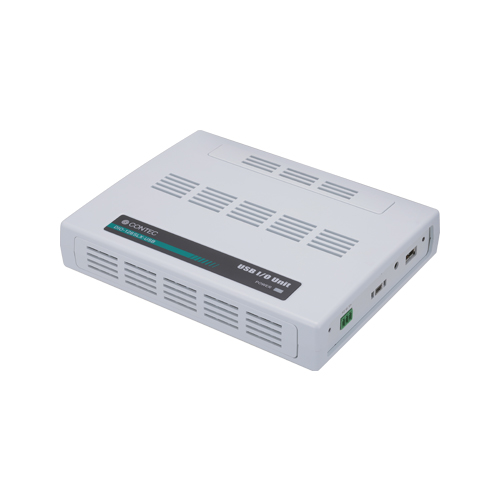

DIO-128SLX-USB 数字量输入输出 USB 单元 双方向128点 (光电隔离 24VDC) - X系列

  • RoHS Compliant
  • 标准保修1年
  • 延长保修可能
  • Bidirectional signal control is possible, because digital input point and a digital output point are common.
  • 128 channels of Optocoupler isolated inputs (compatible with current sink output) and 128 channels of Optocoupler isolated open-collector outputs (current sink type)
  • Compatible to USB1.1/USB2.0 and capable to achieve high speed transfer at HighSpeed (480 Mbps).
  • Common terminal provided per 16 channels
  • Optocoupler bus isolation
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
DIO-128SLX-USB 数字量输入输出 USB 单元 双方向128点 (光电隔离 24VDC) - X系列
  • CE 欧洲合格认证
  • VCCI

可选件

Expansion Accessory Module

項目 項目名
CM-64L Signal monitor Accessory for Digital I/O

Cable

項目 項目名
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

項目 項目名
EPD-100A Screw Terminal (M3 x 100)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Power Supply / AC Adapter

項目 項目名
POA200-20-2 AC-DC Power Adaptor(5VDC, 2A)
POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A

Other Accessories

項目 項目名
BRK-USB-X USB I/O Unit Bracket for X series
CCB-96 Connector conversion card

Software Development Kit

項目 項目名
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver

Library Software

項目 項目名
DAQfast LabVIEW Data Acquisition Library
