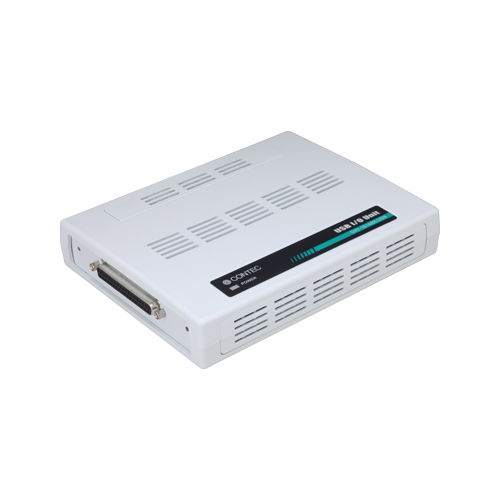

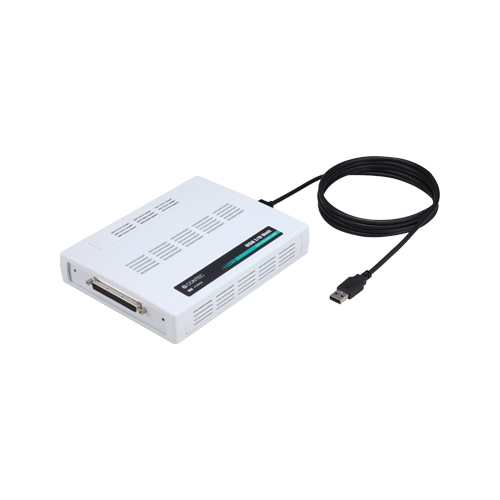

DIO-1616BX-USB 数字量输入输出 USB 单元 16点/16点 (板载12VDC电源光电隔离 12VDC) - X系列

16 channels of Optocoupler isolated inputs (compatible with current sink output) and 16 channels of Optocoupler isolated open-collector outputs (current sink type)
Power for opto-coupler operation (12VDC 240mA) supplied internally
You can use 16 input signals as interrupt request signals.
Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.
Connectors are compatible with PCI/PCI Express bus-compatible board
Windows/Linux compatible driver libraries are supported.

订购信息・选件

型号	产品型号	适应规格
DIO-1616BX-USB	数字量输入输出 USB 单元 16点/16点 (板载12VDC电源光电隔离 12VDC) - X系列

項目	項目名
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver

項目	項目名
ACX-PAC(W32)	ActiveX components sets for measurement system development
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN	LabVIEW Data Acquisition Library

項目	項目名
CM-32L	Signal monitor Accessory for Digital I/O

項目	項目名
PCA37P	37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P	A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P	37pin D-type(M) at Each End, Flat Cable
PCB37PS-P	37pin D-type(M) at Each End, Shield Cable

項目	項目名
POA200-20-2	AC-DC Power Adaptor(5VDC, 2A)

項目	項目名
BRK-USB-X	USB I/O Unit Bracket for X series
