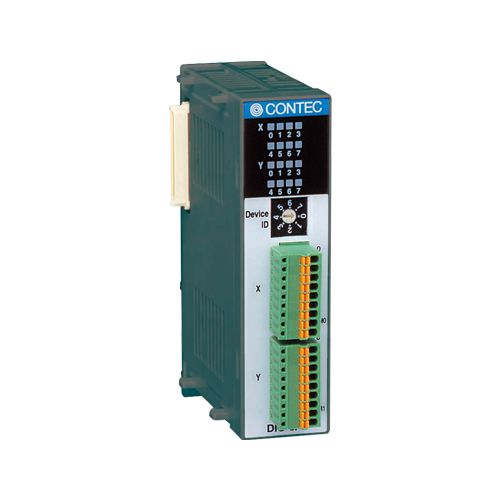

DIO-8/8(FIT)GY 数字量输入输出 F&eIT总线 I/O模块 8点/8点 (光电隔离 12-24VDC)

  • RoHS Compliant
  • 标准保修1年
  • 延长保修可能
  • *


This module perfoms to input/output digital signals to and from external devices, can be used by connecting it to F&eIT series controller modules . DIO-8/8(FIT)GY can be connected to DIO-8/8(USB)GY respectively, to increase the number of I/O channels. Opto isolation prevents electrical influence from external devices to the host PC. DIO-8/8(FIT)GY has 8 channels input and 8 channels output per module.

    • DIO-8/8(FIT)GY has 8 channel digital signal input and 8 channel digital output, treating 8 channels as a group.
    • Isolated I/O operations using an opto-coupler improves noise immunity.
    • A rotary switch allows you to set device IDs to help you keep track of device numbers.
    • Screwless connector plug allows you to easily attach and detach wires without using any special tools.
    • Like other F&eIT series products, the module has a 35mm DIN rail mounting mechanism as standard. A connection to a controller module can be effected on a lateral, stack basis in a unique configuration, which permits a simple, smart system configuration without the need for a backplane board.
