DO-16(FIT)GY 数字量输出 F&eIT总线 I/O模块 16点 (光电隔离 12-48VDC)

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

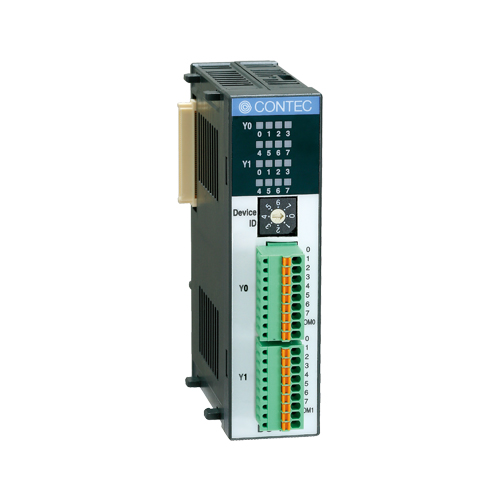

The Module perform to output digital signals to external devices, can be used by connecting it to F&eIT series controller modules . DO-16(FIT)GY can be connected to DO-16(USB)GY, respectively, to extend I/O channels. Opto-isolation prevent electrical influence from external devices to the host PC. DO-16(FIT)GY has 16 output channels per module.

• • DO-16(FIT)GY has 16 channel digital signal output, treating 8 channel as a group and handling two groups per operation.
• • Isolated I/O operations using an opto-coupler improves noise immunity.
• • A rotary switch allows you to set device IDs to help you keep track of device numbers.
• • Screwless connector plug allows you to easily attach and detach wires without using any special tools.
• • Like other F&eIT series products, the module has a 35mm DIN rail mounting mechanism as standard. A connection to a controller module can be effected on a lateral, stack basis in a unique configuration, which permits a simple, smart system configuration without the need for a backplane board.
