RRY-4(FIT)GY 干簧继电器触点数字量输出 F&eIT总线 I/O模块 4点 (最大125VAC或30VDC)

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

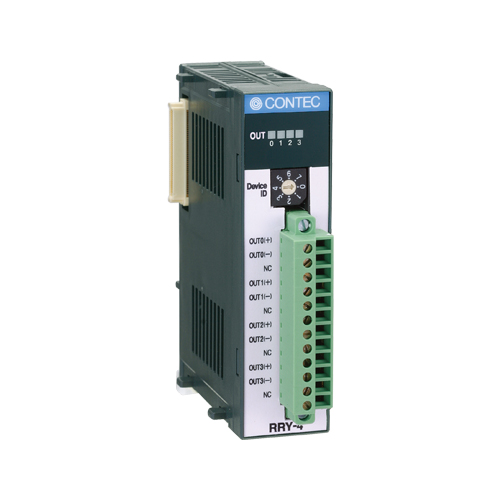

This product is the module for expansion (device module) which expands a reed relay junction output interface for various controllers. It is used connecting for I/O controller module CPU-CAxx(FIT)GY of F&eIT series, and microcontroller unit CPU-SBxx(FIT)GY. The relay output of a maximum of four points can be performed by one module.

• • The independent common reed relay junction output of four points can be performed.
• • Output rating is designed by the large scale of a maximum of 125VAC/30VDC and 2A per point.
• • Device ID can be set up with a rotary switch and apparatus number management can be performed easily.
• • This module is equipped with 35mmDIN rail attachment mechanism as standard like other F&eIT series products. Moreover, the connection with a controller module can constitute a system simply and smartly without using connection apparatus, such as a backplane board, since it has unique composition which carries out a stack connection on the side.
