GMB-IEHL210 工业主板 - / Mini-ITX / Intel Celeron J6413 Quad processor (Elkhart Lake SoC) / 1x PCIe(x1) Expansion Slot

  • RoHS Compliant
  • 标准保修2年
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • Intel® Elkhart Lake platform
  • Dual 2.5 Gbps LAN ports and M.2 support
  • Triple displays output support
  • Extend Peripherals Freely Rich Interface

概要・特点

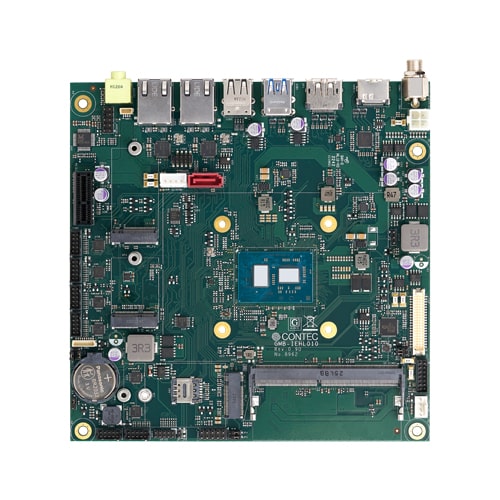

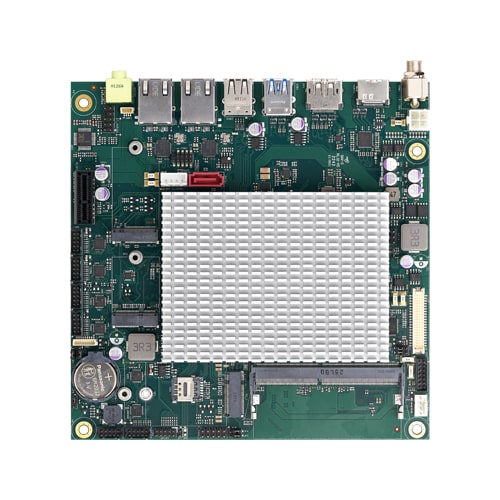

The new product is an industrial motherboard that utilizes the Mini-ITX form factor. It is designed specifically for thin edge computing applications on the Internet of Things (IoT) space. The system is powered by an IntelⓇ Elkhart Lake platform J6413 Quad Processor, which provides reliable performance for embedded applications.

应用实例

医疗设备

工厂自动化设备

设施信息显示终端

数字标牌终端

  • Intel® Elkhart Lake platform
    • Intel® Elkhart Lake platform, Total 4 Cores, 4 Threads, Processor Base Frequency1.80 GHz, Cache1.5 MB L2 Cache, and TDP10 W.
  • Dual 2.5 Gbps LAN ports and M.2 support
    • Two sets of integrated 2.5 Gigabit Ethernet ports and M.2 support for add-on Wi-Fi modules provide faster and more reliable network connectivity.
  • Triple displays output support
    • The new product supports triple displays output with DisplayPort (v1.2), HDMI 1.4b, and LVDS. It is powered by DC-IN 12VDC using a lockable DC-Jack. The system also supports on-board TPM2.0 for hardware-based security.
  • Extend Peripherals Freely Rich Interface

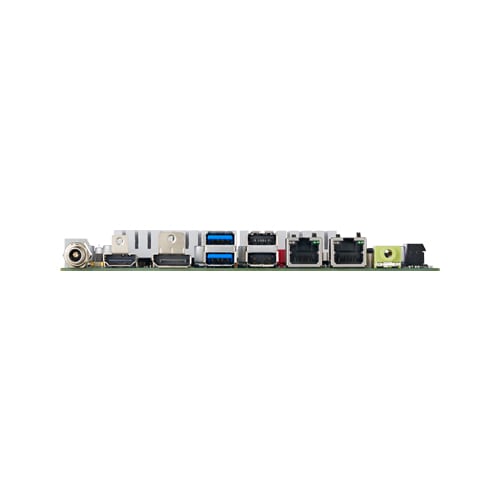

    • Equipped with a variety of interfaces such as serial port, USB 3.2/ 2.0, 8-bit GPIO, M.2 Key E/ Key B / Key M, LAN, HDMI, ect. For customers with various needs.
