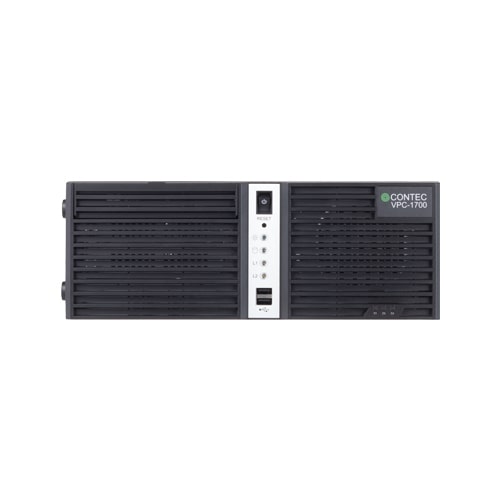

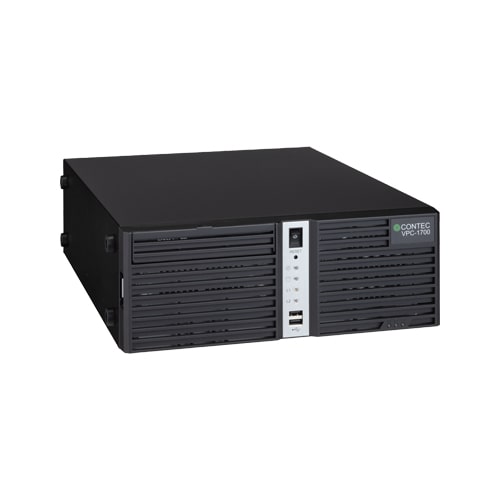

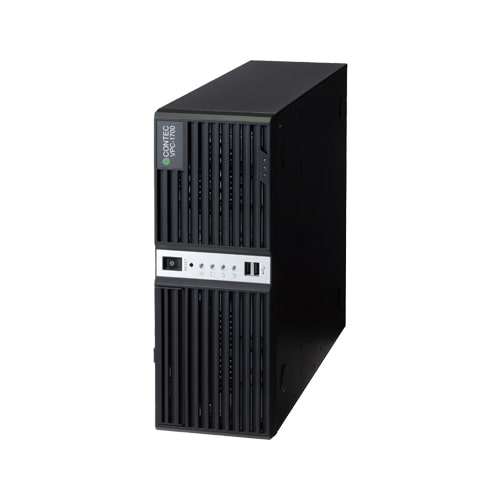

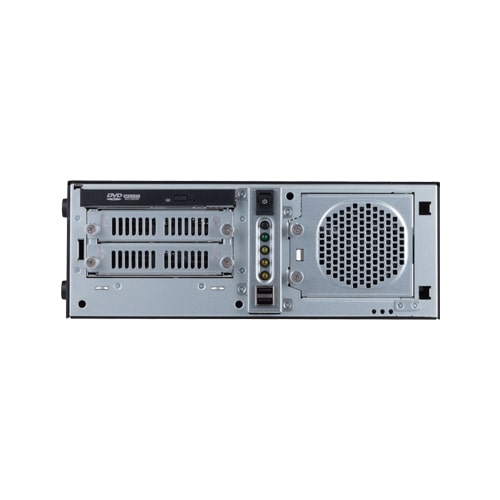

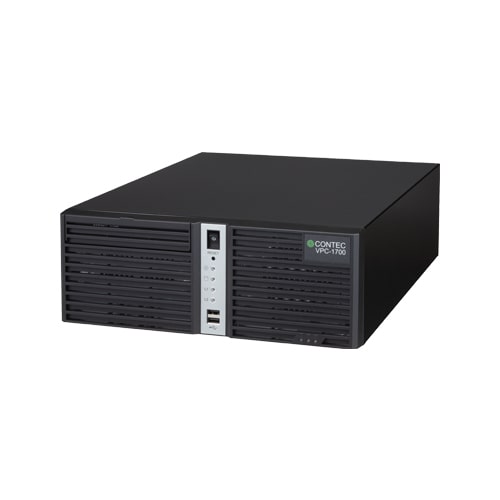

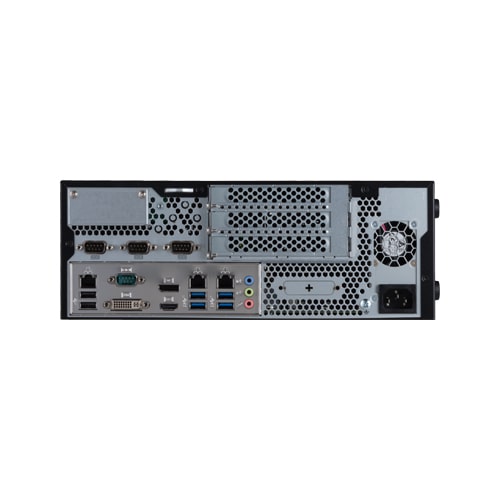

VPC-1700-G 工控机 VPC-1700-G - 薄塔式 / Intel 8th Gen. (Coffee Lake + Q370) / 1x PCIe(x1), 2x PCI / 3x PCI

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

订购信息・选件

产品模式与订货型号

BTO model

This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation *1.

CPU	Core i7-8700T Core i5-8500T Celeron G4900T
Memory	8GB 16GB 32GB
Storage 1	3.5 inch HDD 2TB / Removable 3.5 inch HDD 4TB / Removable 2.5 inch SSD 256GB / Removable 2.5 inch SSD 512GB / Removable 2.5 inch SSD 1TB / Removable None
Storage 2 *2	3.5 inch HDD 2TB / Removable 3.5 inch HDD 4TB / Removable 2.5 inch SSD 256GB / Removable 2.5 inch SSD 512GB / Removable 2.5 inch SSD 1TB / Removable None
Optical Drive / Hard Disk	DVD super multi drive 2.5 inch SSD 256GB 2.5 inch SSD 512GB 2.5 inch SSD 1TB None
RAID(Mirroring)	Software RAID Hardware RAID None
OS	Windows 10 IoT Enterprise 2019 LTSC 64-bit (Chinese/English/Japanese/Korean) None
Expansion Slots	1x PCI Express(x1), 2x PCI 3x PCI None
Options	Keyboard Mouse Stand Durable case fan(Sanyo denki) OS installation drive selection None

*1 There are combinations that can not be configured. Please inquire in detail.
*2 If needs to configure the RAID function, selects the same device for Storage 2 as of Storage 1



可选件

Storage
