PT-M10WB-300 触摸屏一体机 PT-M10WB - 触摸屏PC / 面板安装式 / 10.1-inch LCD PCAP触屏 / Atom x6413E (Elkhart Lake SoC) / DC电源

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

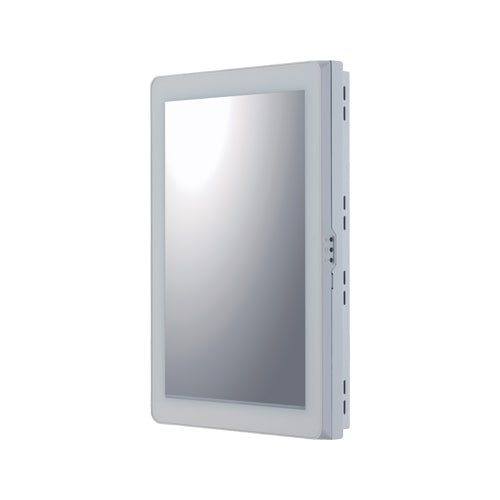

This product is a fanless panel computer equipped with a 10.1-inch (WXGA 1280 × 800; capacitive) touch panel display. This product is equipped with a built-in UPS battery that can operate for 5 minutes or more in the case of power failure such as a power outage and momentary blackout, contributing to improved system stability and reliability by being able to automatically shut down the OS using the included utility software.

• Contributing to reduction of running cost and promotion of energy efficiency

  • With the low power consumption platform Intel Atom processor x6413E, this product achieves low power consumption while ensuring adequate performance.
• Safe even if power is interrupted. UPS backup power supply, OS automatic shutdown function

  • A backup power supply (nickel-metal hydride secondary battery) is built-in to the computer, protecting the system from sudden shutdown caused by unintended power interruption such as a power outage and momentary blackout. OS automatic shutdown utility software is also included.
• Abundant expansion interface matched with device incorporation

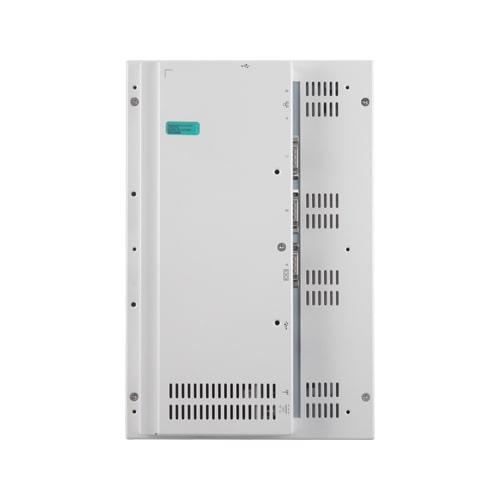

  • Equipped with an abundant interface, including USB2.0 × 5, LAN × 2, and COM (RS-232C) × 3. Peripheral equipment for professional use, such as barcode readers or thermal printers, can be connected directly. Storage can also be easily exchanged from the side.
• Capacitive touch screen adopted

  • It is tuned to be operable with the use of rubber gloves, so there is no problem using it in places where gloves are required.
• Fan-less design that reduces maintenance and inspection work

  • This product's spindle-less design eliminates CPU fan, and relieves the concern about dust or foreign matter to get into the product. The using parts that degrade over time is minimized to facilitate maintenance.
• Vertical screen installation possible

  • To improve visibility, vertical screens can be installed using a configuration that is commonly used in digital signage, advertising displays, and interactive kiosks.
