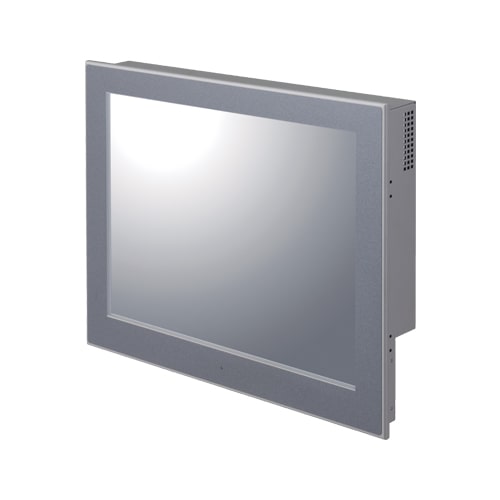

PT-M15SA-210 触摸屏一体机 PT-M15SA - 触摸屏PC / 面板安装式 / 15.1-inch LCD / 电阻方式触屏 / Atom x5 E3940 (Apollo Lake SoC) / DC电源

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

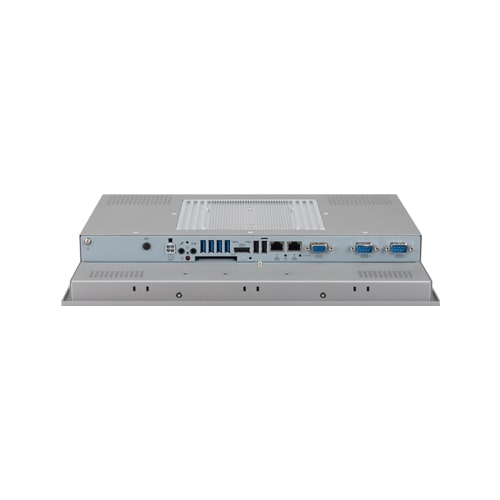

This product is a fan-less PANEL computer with an Intel Atom processor E3940 (1.6GHz). Addition to DisplayPort, a wide variety of interfaces including USB3.2 Gen1 (USB3.0) x 4, LAN x 2 are provided. It employs a M.2 card for storage and is fan-less to ensure a totally spindleless design that simplifies maintenance.
Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level and Contec's unique functions :"断电保护", "CONTEC Fast Boot", "Secure Boot USB Key", "Disk Copy", "Self-diagnosis(自我诊断)" are available.

• Contributing to reduction of running cost and promotion of energy efficiency

  • With the low power consumption platform Intel Atom® processor E3940, this product achieves low power consumption while ensuring adequate performance.
• Fan-less design reduces maintenance work

  • The product is fan-less to ensure a totally spindle-less design that simplifies maintenance, relieving the concern about dust or foreign matter to get into the product. Moreover, along with minimized use of degrading parts greatly reduce maintenance work.
• Adopting a 5-wire resistive film touch-screen holds high durability

  • It has a 5-wire resistive film touch-screen that maintains high durability. The operating life is long-lasting of 36 million times^*1 .
    • *1
      with Load 250g, Speed twice/second, by machine keying.
• "Power failure protection system" features power-off without OS shutdown

  • Equipped with the "Power failure protection system" function that protects data and prohibits writing to storage in the event of power failure. Along with the lockdown (disk writing suppression) function of Windows 10 IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.
• High-security design contributes to a highly reliable system

  • The latest security functions such as TPM2.0 and Secure Boot, as well as CONYEC's original functions including the USB Boot Protect are provided. This product is designed with the high security required for industrial applications in mind.
• CONTEC-customized BIOS provides useful utility

  • Contec's proprietary BIOS-based utility ^*2 has been implemented. "CONTEC Fast Boot" realizes Windows startup in 10 seconds ^*3 . Disk Copy provides secure disk backup at the BIOS level and supports backup in file and compressed file formats. In addition, a "BIOS update tool" for updating the BIOS ^*4 is available.
    • *2
      For more information, see the BIOS Setup chapter.
    • *3
      It is an actual measurement value when the Windows 10 and HORM function is enabled at the factory. The time varies depending on the configuration. TXE, TPM, Network Stack, and SMART Self Test are not supported when fast startup is enabled.
    • *4
      For more information, please contact our Technical Support Center.
