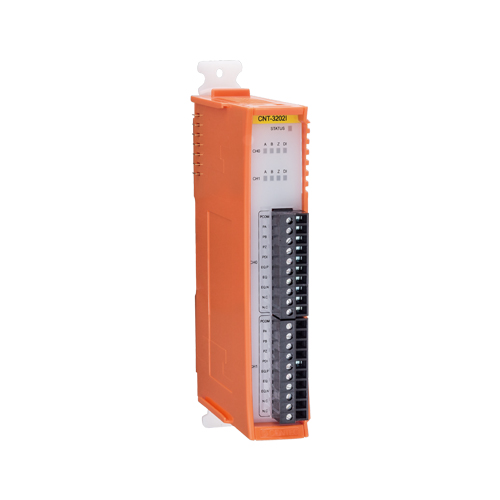

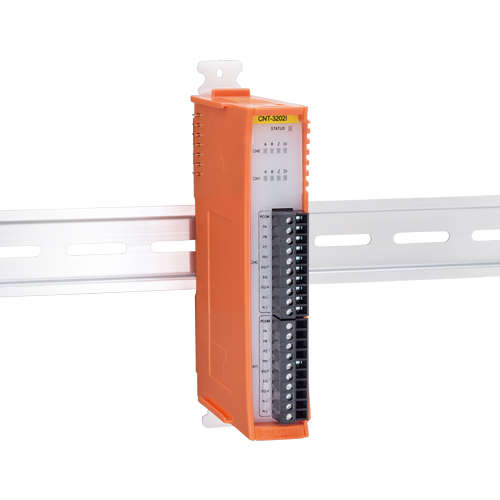

CPS-CNT-3202I 计数 CONPROSYS I/O模块 2ch (32bit 上/下计数 500kHz) / 增量编码器接口 / 隔离

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

This product is an extension module that adds the interface, which counts input pulse signals from external devices, to the configurable controller of our CONPROSYS series. It has two channels of 32-bit up/down counters, allowing external devices such as a rotary encoder and a linear scale to be connected.

• The product can count two-phase signals

  • It can count two-phase signals and single-phase signal, which can be outputs of some rotary encoders and linear scales. It is equipped with two channels of 32-bit up/down counters.
• Optocoupler isolated input

  • It has an optocoupler isolated input whose response frequency is 500 kHz.
• Interrupt, Output signal

  • Each channel can generate an interrupt request signal and a one-pulse output signal when the count data matches a pre-specified value.
• Digital filter to prevent input signals from carrying noise or a chattering

  • It has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be set with a digital filter by software command.
• Output circuits include zener diodes for surge voltage protection

  • Zener diodes are connected to the output circuits to protect against surge voltages.
• Equipped with the LED for an operation check

  • It has the LED for an operation check, which helps you visually confirm the presence of signal inputs.
