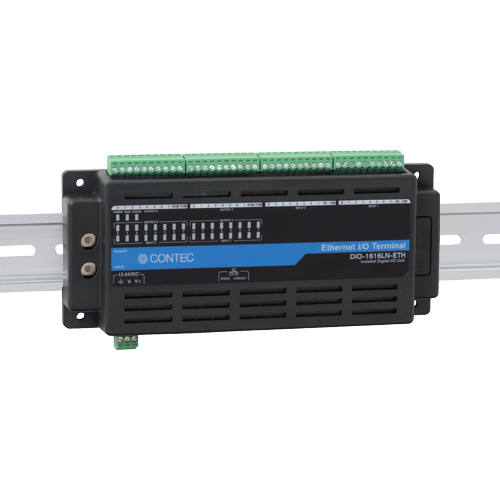

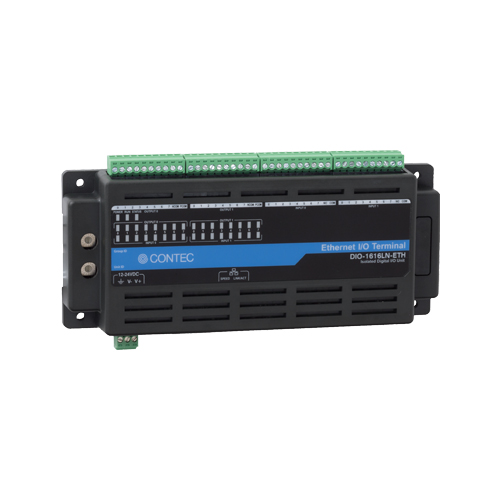

DIO-1616LN-ETH Isolated Digital I/O Unit (16ch DI, 16ch DO) for Ethernet

  • RoHS Compliant
  • 标准保修1年
  • 延长保修可能
  • 16 channels of Optocoupler isolated inputs (compatible with current sink and current source outputs) and 16 channels of Optocoupler isolated open-collector outputs (compatible with current sink type)
  • With a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
  • Output circuits include Zener diodes for surge voltage protection and circuits for overcurrent protection.
  • Operable in a wide range of 12 - 24VDC power
  • Fail-safe function
  • Windows compatible driver libraries are attached
  • *
    有关延长保修的详细信息,请与我们联系。

概要・特点

This product is an Ethernet-compliant digital I/O Unit used to provide a digital signal I/O function from PC LAN port.

Digital signals can be input and output at 12 - 24VDC.

16 channels of Optocoupler isolated inputs (compatible with both current sink and current source outputs) and 16 channels of Optocoupler isolated open-collector outputs (compatible with current sink type) are equipped. Also, including a digital filter function which prevents wrong recognition of input signals, output transistor protection circuit (surge voltage protection and over current protection), and fail-safe function that sends communication errors.

  • 16 channels of Optocoupler isolated inputs (compatible with current sink and current source outputs) and 16 channels of Optocoupler isolated open-collector outputs (compatible with current sink type)
    • This product has the 16 channels of Optocoupler isolated inputs (compatible with current sink and current source outputs) and 16 channels of Optocoupler isolated open-collector outputs (current sink type) whose response speed is 200μsec.
  • With a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
    • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.  All input terminals can be added a digital filter, and the setting can be performed by software.
  • Output circuits include Zener diodes for surge voltage protection and circuits for overcurrent protection.
    • Zener diodes are connected to the output circuits to protect against surge voltages.  Similarly, Over-current protection circuits are fitted to each group of 8channels outputs.
      The output rating is max. 60VDC, 100mA per channel
  • Operable in a wide range of 12 - 24VDC power
    • The product can be operated in the various environments with a wide range power supply of 12 - 24VDC. In addition, the FG terminal is equipped in the power connector.
  • Fail-safe function
    • The fail-safe function is available when communication errors such as LAN cable disconnection occur.
  • Windows compatible driver libraries are attached
    • Using the attached digital I/O driver API-DIO(WDM) makes it possible to create applications of Windows. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
