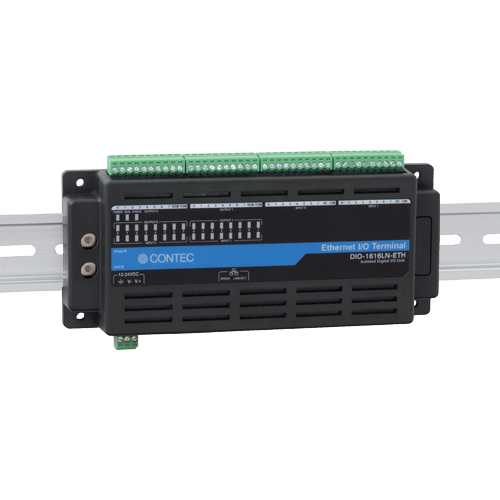

DIO-1616LN-ETH Isolated Digital I/O Unit (16ch DI, 16ch DO) for Ethernet

16 channels of Optocoupler isolated inputs (compatible with current sink and current source outputs) and 16 channels of Optocoupler isolated open-collector outputs (compatible with current sink type).
Digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
Output circuits include Zener diodes for surge voltage protection and circuits for overcurrent protection.
Operable in a wide range of 12 - 24VDC power
Windows/Linux support device driver
Windows/Linux compatible driver libraries are supported.

订购信息・选件

型号	产品型号	适应规格
DIO-1616LN-ETH	Isolated Digital I/O Unit (16ch DI, 16ch DO) for Ethernet

項目	項目名
API-CAP(W32)	Windows version Driver Library for F&eIT I/O module
API-DIO(LNX)	Linux version Digital I/O Driver
API-DIO(WDM)	Windows Driver for Digital I/O Driver

項目	項目名
DAQ-DNC-FE	A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN	LabVIEW Data Acquisition Library

項目	項目名
POA201-10-2	AC adaptor (12V,1A)

項目	項目名
CPS-MAG01-4	Magnet (Four Piece Set)

項目	項目名
ESP-F5	Extended warranty service package (5 years service course) (Japan only)
ESP-S1	Extended warranty service package (Extension one year) (Japan only)
