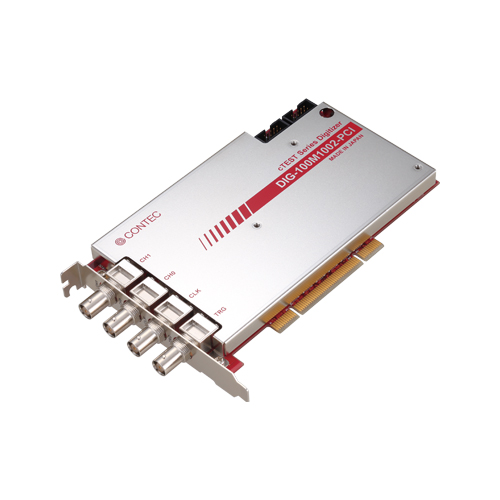

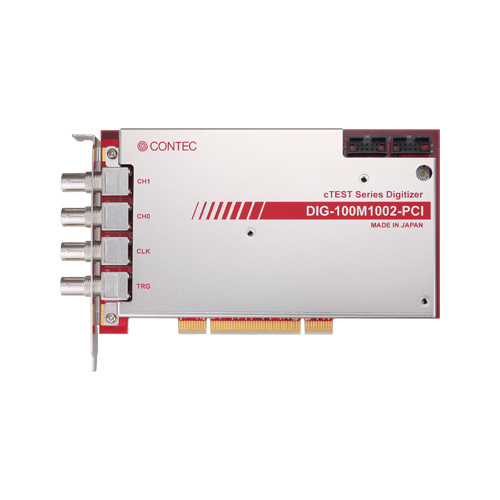

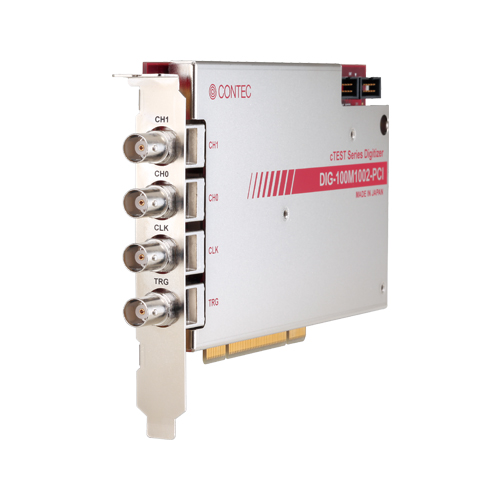

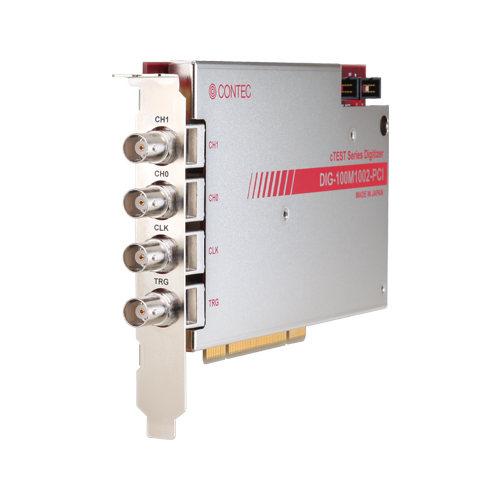

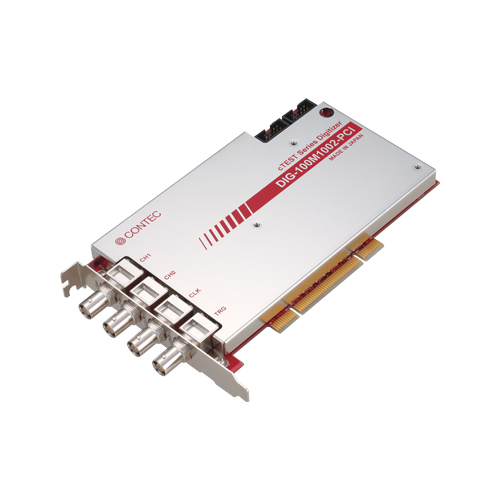

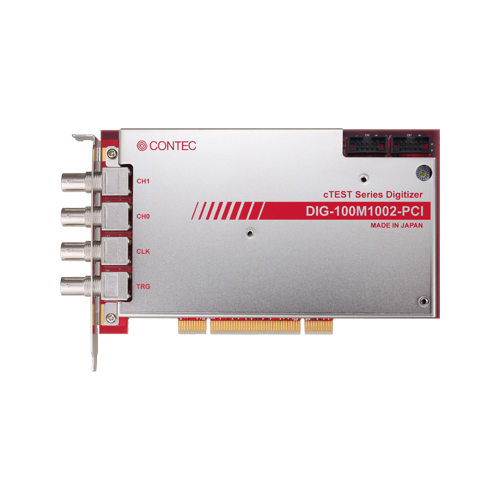

DIG-100M1002-PCI 100MSPS 2ch Digitizer Board for PCI

库存有限

标准保修3年
延长保修可能

修理承接期限 : 2032/09/17

The AI-80M1202-PE is available with an equivalent conversion speed (80MSPS (12.5 nsec)).
We recommend that you evaluate this product before switching.

Free yourself from visual inspection. The inspected input signal can be automatically judged whether OK or NG.
Front panel software is supplied to be used as a oscilloscope or a waveform judgment instrument
Simultaneous sampling of 2 channels with a resolution of 10 bits and at 10MSPS (100nsec) maximum conversion speed
The function of saving/reading configuration file and auto setup for sampling condition
A variety settings for signal input
The synchronization between external instrument and the board is possible with the reference clock I/O

*
有关延长保修的详细信息，请与我们联系。

订购信息・选件

替代推荐产品

产品名称	说明
模拟量输入 PCI Express 总线板卡 80MSPS 12-bit 2ch AI-80M12020-PE	转换速度相当于80MSPS (12.5毫秒) 。我们建议您在更换之前对产品进行评估。

产品模式与订货型号

型号	产品型号	适应规格
DIG-100M1002-PCI [库存有限]	[修理承接期限: 2032年9月17日] 100MSPS 2ch Digitizer Board for PCI

可选件

设备驱动程序

項目	項目名
API-DIG(WDM)	Windows Driver for Digitizer Driver

开发支持工具

項目	項目名
VI-DAQ	VI Library of data acquisition for LabVIEW

电缆

項目	項目名
BNC-B	BNC cable (1m, 2m, 3m)

延长保修服务

項目	項目名
ESP-F6	Extended warranty service package (6 years service course) (Japan only)
