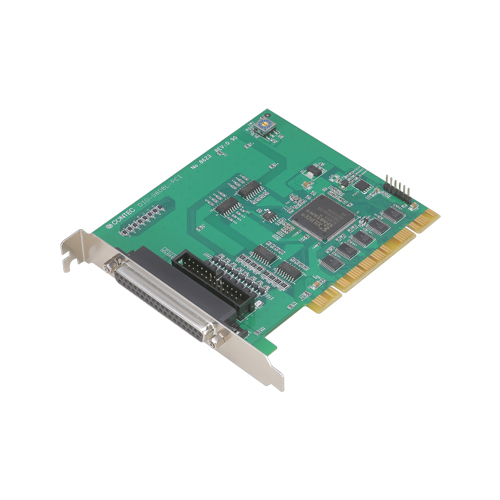

DIO-0808L-PCI Isolated Digital I/O Board for PCI

Opto-coupler isolated input (compatible with current sink output) and opto-coupler isolated open-collector output (current sink type)
Opto-coupler bus isolation
All of the input signals can be used as interrupt request signals.
Windows compatible driver libraries are attached.
This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
Output circuits include zener diodes for surge voltage protection and poly-switches for overcurrent protection.

订购信息・选件

型号	产品型号	适应规格
DIO-0808L-PCI [停产商品]	[修理承接期限: 2023年12月16日] Isolated Digital I/O Board for PCI

項目	項目名
CM-32L	Signal monitor Accessory for Digital I/O

項目	項目名
PCA37P	37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P	A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P	37pin D-type(M) at Each End, Flat Cable
PCB37PS-P	37pin D-type(M) at Each End, Shield Cable
