PIO-32/32F(PCI)H 数字量输入输出 PCI总线 板卡 32点/32点 (高速光电隔离 12-24VDC)

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

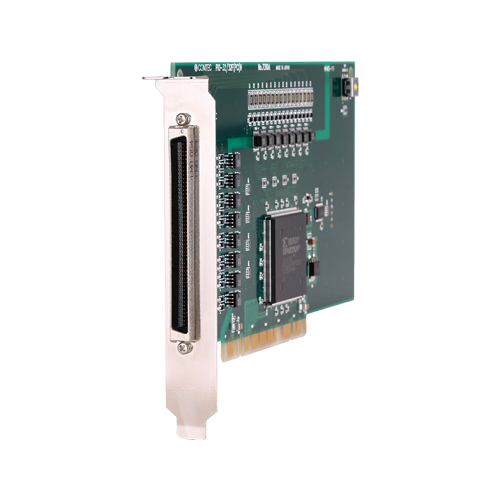

PIO-32/32F(PCI)H is the interface board of the PCI bus conformity which inputs and outputs a digital signal. The opening-and-closing state of a switch can be inputted, or a relay can be controlled. This product uses the high-speed photo-coupler and response time has become less than 5μsec. The input of a maximum of 32 points and the output of a maximum of 32 points can be performed in one board. The driver (API-PAC(W32)) for Windows and Linux appending. This product has difference in specification for PIO-32/32F (PCI), although connector form, and signal arrangement are compatibility.

• There are 32 photo-coupler isolation inputs and 32 photo-coupler isolation open collector outputs. Moreover, it can respond to a different external power supply because the common composition of a 16-point unit.
• The high-speed photo-coupler is used and response time has become less than 5μsec.
• Since it is electrically isolated by the photo-coupler, the PCI bus side and the input-and-output signal interface part are excellent in noise-protection nature.
• Connector form and signal arrangement are same as PIO-32/32F (PCI), and compatibility.
