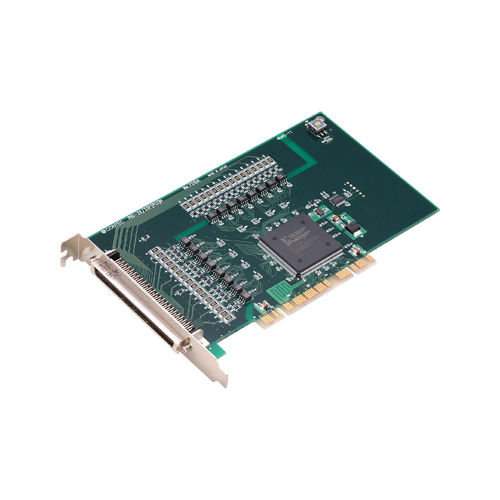

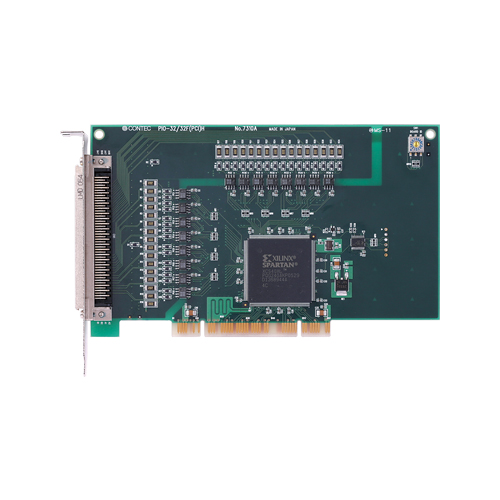

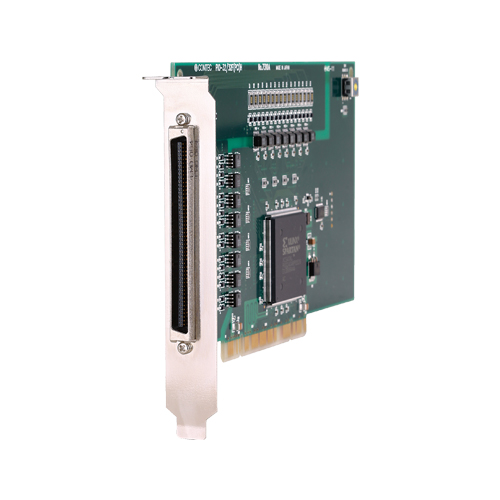

PIO-32/32F(PCI)H 数字量输入输出 PCI总线 板卡 32点/32点 (高速光电隔离 12-24VDC)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • There are 32 photo-coupler isolation inputs and 32 photo-coupler isolation open collector outputs. Moreover, it can respond to a different external power supply because the common composition of a 16-point unit.
  • The high-speed photo-coupler is used and response time has become less than 5μsec.
  • Since it is electrically isolated by the photo-coupler, the PCI bus side and the input-and-output signal interface part are excellent in noise-protection nature.
  • Connector form and signal arrangement are same as PIO-32/32F (PCI), and compatibility.
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
PIO-32/32F(PCI)H 数字量输入输出 PCI总线 板卡 32点/32点 (高速光电隔离 12-24VDC)
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)

Expansion Accessory Module

項目 項目名
CM-32L Signal monitor Accessory for Digital I/O
CM-64L Signal monitor Accessory for Digital I/O

Other Accessories

項目 項目名
CCB-96 Connector conversion board

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
