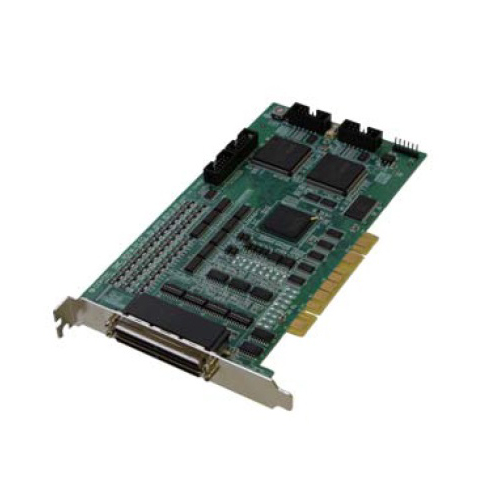

SMC-8DFM-PCIS 8 axes high-speed line driver output motion control board for PCI(high-performance version)

停产商品

标准保修3年

修理承接期限 : 2023/07/21

Capable of multi-axis independent control and pulse output up to 6.5 Mpps
Capable of various control operations such as positioning, linear/circular interpolation, frame continuous operations, synchronization control, and so on
Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
Capable of storing positioning information up to 1024 frames for each axis and control without extra CPU load
With the multi-boards and axis synchronization control function, capable of aligning the timing for operation start and end
Windows compatible driver libraries are attached

*
有关延长保修的详细信息，请与我们联系。

机能・规格

扩展模块

系列
总线规格	PCI
类型	Short Size
所用连接器	2x 0.8mm-pitch 100-pin (Female)

电机运动控制

通道数	8-ch
速度范围	0.1 ~ 6.5Mpps

计数器

通道数	8-ch
计数方式	28-bit Up/Down count
响应速度	5MHz [differential]; 3MHz [TTL]; 1MHz [open collector output]

支持的操作系统

支持的操作系统	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit)
