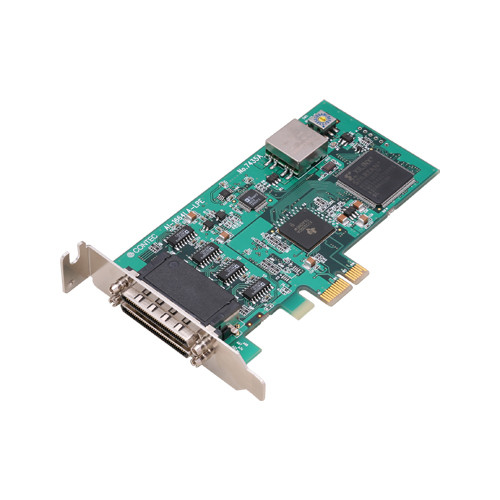

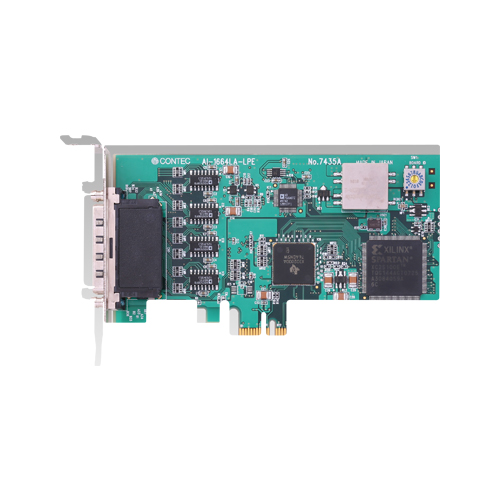

AI-1664LA-LPE 模拟量输入 Low Profile PCI Express 总线板卡 /64ch 模拟量输入(16bit 100ks/s) / 1ch 计数器 - 多功能DAQ L系列

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • High-precision analog input 64 channels, each 4 channels for digital I/O and counter 1 channel
  • The start/end of sampling can be controlled by software, comparison of conversion data, an external trigger, etc.
  • Equipped with buffer memory (1K data) that can be used in the FIFO or RING format
  • Digital filter function included to prevent misdetection due to chattering on external signals
  • Functions and connectors are compatible with PCI compatible card AD16-64(LPCI)LA.
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
AI-1664LA-LPE 模拟量输入 Low Profile PCI Express 总线板卡 /64ch 模拟量输入(16bit 100ks/s) / 1ch 计数器 - 多功能DAQ L系列
  • VCCI
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
ADC-68M/96F Shield Cable for Analog I/O Card for CardBus
PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

項目 項目名
ATP-32F BNC Connectors for Analog I/O Card
ATP-8 BNC Connector Accessory for Analog I/O Card
DTP-64A Screw Terminal (M3 x 96)
EPD-68A Screw Terminal (M3 x 68)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Application software

項目 項目名
C-LOGGER Data Logger Software for Windows

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
API-TIMER(W32) Timer Driver

Library Software

項目 項目名
ML-DAQ MATLAB compliant Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
