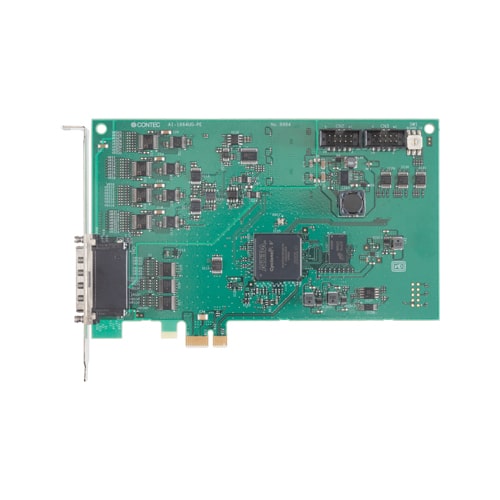

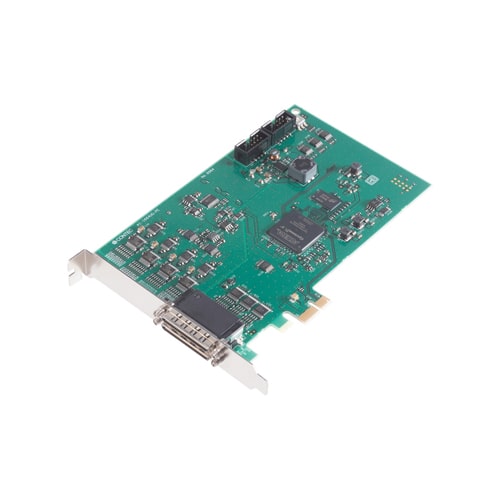

AI-1664UG-PE 模拟量输入 PCI Express 总线板卡 64ch(16bit 1MSPS) / 总线主控传输 - 多功能 DAQ G 系列

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • High-performance, multifunction single DAQ device with analog input and digital input/output and counter functions
  • DMA bus master transfer function for high-speed, continuous sampling
  • Built-in event controller for advanced synchronization control
  • Synchronized operation of up to 16 devices (connection via synchronization control connector)
  • Jumper-less, trim-less configuration (software configuration)
  • Interface connector shape and signal pin assignments compatible with the AD16-64(LPCI)LA, AI-1664LA-LPE, and AI-1664LAX-USB
  • *



型号 产品型号 适应规格
AI-1664UG-PE 模拟量输入 PCI Express 总线板卡 64ch(16bit 1MSPS) / 总线主控传输 - 多功能 DAQ G 系列
  • CE 欧洲合格认证
  • VCCI


Device Drivers

項目 項目名
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver

Development Support Tools

項目 項目名
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library


項目 項目名
C-LOGGER Data Logger Software for Windows


項目 項目名
ADC-68M/96F Shield Cable for Analog I/O Card for CardBus
PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors


項目 項目名
ATP-32F BNC Connectors for Analog I/O Card
ATP-8 BNC Connector Accessory for Analog I/O Card
DTP-64A Screw Terminal (M3 x 96)
EPD-68A Screw Terminal (M3 x 68)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)
  • * Please refer to the manual for details and connection of optional products.
