概要・特点

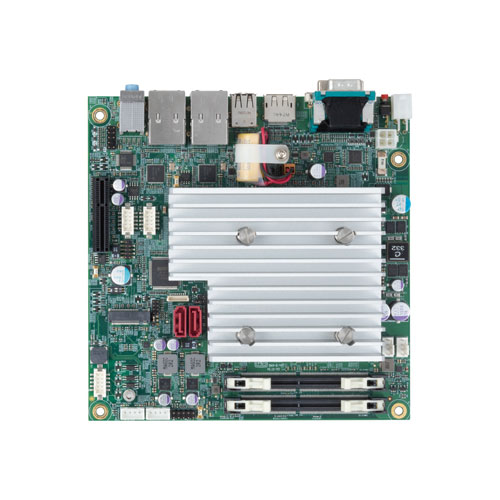

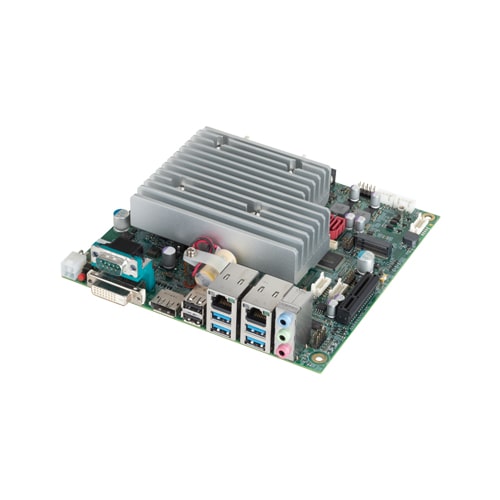

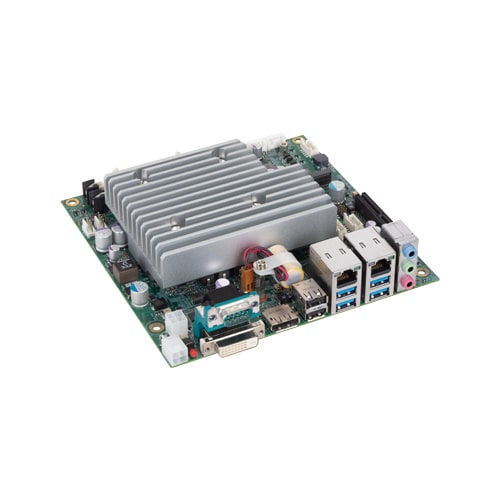

This product is the Mini-ITX mother board with M.2 slot. It adopts Seventh-generation Intel® Core i7/i5/Celeron Processor and DDR4 SDRAM memory with up to 32GB can be equipped. In addition, a variety of interface such as dual-LAN, USB3.0, Displayport, DVI-D, and RS-232C are provided. Embedded-type CPU have been adopted. The use of readily available parts ensures the ease of the use of the product. In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level.

• Seventh-generation Kabylake-U processor adopted

  • Core i7-7600U, i5-7300U, Celeron 3965U have been adopted. It saves power consumption and also provides high computing and graphic performances. Embedded-type CPU makes the stable supply possible.
• M.2 slot realizes high-speed data transfer

  • One slot of the latest interface, M.2 (Key M), is equipped to transfer data with high-speed. The product can be used according to user’s purposes with high-speed M.2 SSD for OS, and HDD for data storage.
• Fan-less design reduces maintenance work

  • The product is fanless to ensure a totally spindleless design that simplifies maintenance, relieving the concern about dust or foreign matter to get into the product. Moreover, along with minimized use of degrading parts greatly reduce maintenance work.
• A wide range of power supplies (10.8 to 31.2VDC) supported

  • As the product supports a wide range of power (10.8 to 31.2VDC), it can be used in a variety of power environments.
• Major types of peripherals are supported with rich interfaces

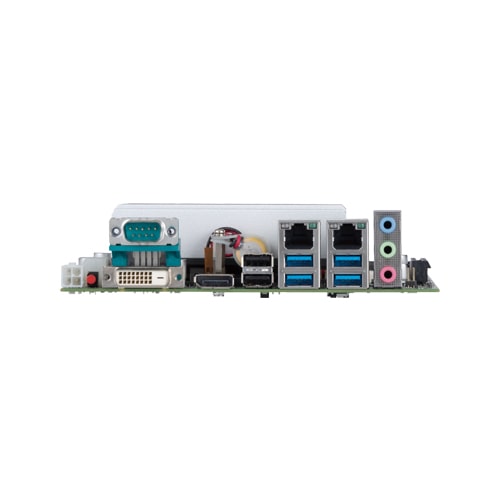

  • It has a variety of extended interface such as DVI-D x 1, DisplayPort×1, 1000BASE-T x 2, USB3.0 x 4, USB2.0 x 4, and serial (RS-232C) x 3.
