SH-9005F FLEXLAN 系列千兆 5 端口非管理型工业交换集线器

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

This product is a industrial switching HUB with 5 ports for IEEE802.3ab(1000BASE-T) / IEEE802.3u(100BASE-TX) / IEEE802.3(10BASE-T) compliant. In addition, the Auto MDI/MDI-X features automatic negotiation. An ideal product for the place where quietness is required as it contains no fan. Moreover, with metal that is excellent in heat dissipation, the product can operate in the temperature between -20°C and 60°C (-4°F and 140°F). There are two supplies of power, and function that prevents power from connecting in reverse. Please read this manual carefully so that you can build a system by connecting the Switching Hub Unit to external devices.

• Five of 1000BASE-T ports are equipped

  • The product has five ports which conform to IEEE802.3ab(1000BASE-T) / IEEE802.3u(100BASE-TX)/ IEEE802.3(10BASE-T). Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired.

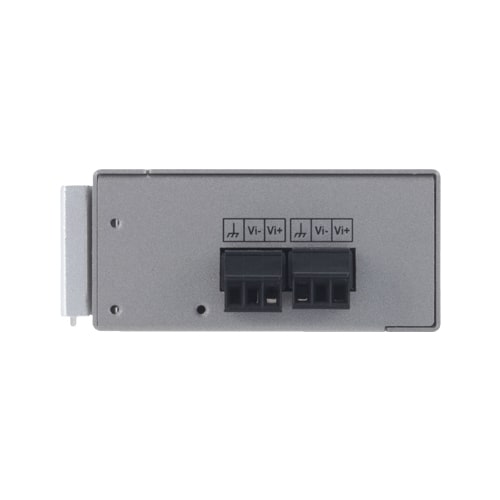

• Capable of operating in a wide-ranged power inputs, and features dual power support

  • The product is capable of operating in a wide range of DC power between 8 and 35VDC. Moreover, dual power supports the product to continue to work even if one of the power supplies fails.
• Adaptable to a wide range of temperature between -20°C and 60°C(-4°F and 140°F)

  • The use of a metal casing with excellent heat dissipation achieves a wide range of temperature (-20°C to 60°C, -4°F to 140°F) specifications, providing superior environmental resistance and durability, and allowing dependable use in harsh industrial environments.

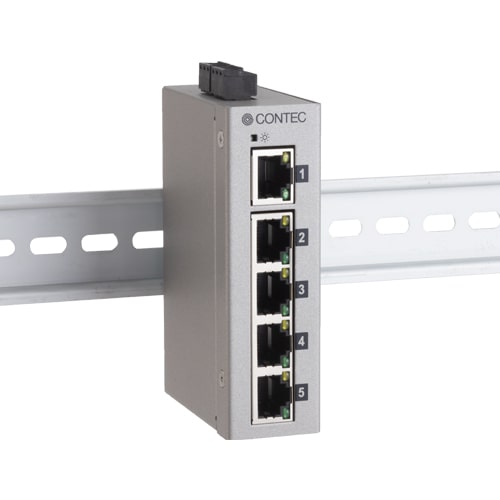

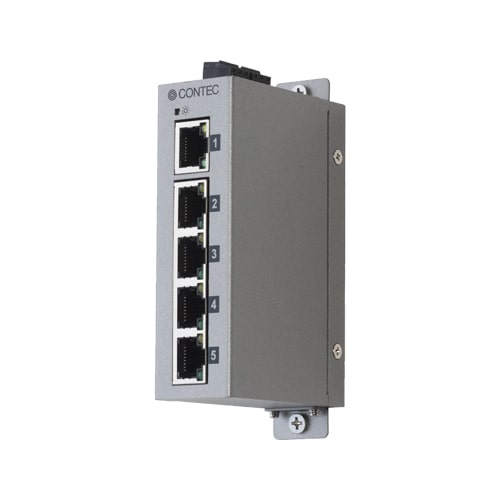

• DIN rail mounting or Wall installation

  • With the supplied brackets, the product can be set on a 35mm-DIN rail or on the wall.
