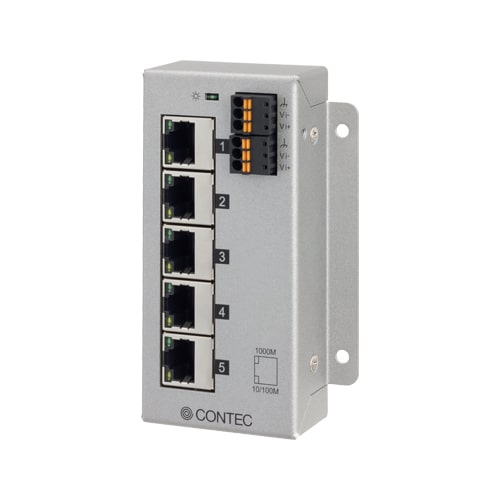

This product is a flat type industrial switching HUB with 5ports for IEEE 802.3ab(1000BASE-T) / IEEE 802.3u(100BASE-TX) / IEEE 802.3(10BASE-T) compliant.
In addition, the Auto MDI/MDI-X features automatic negotiation.
An ideal product for the place where quietness is required as it contains no fan. Moreover, with metal that is excellent in heat dissipation, the product can operate in the temperature between -40 and 70°C. There are two supplies of power, and function that prevents power from connecting in reverse.
-
Five of 1000BASE-T ports are equipped
- The product has five ports which conform to IEEE 802.3ab(1000BASE-T) / IEEE 802.3u(100BASE-TX)/ IEEE 802.3(10BASE-T). Due to the fanless design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired.
-
Capable of operating in a wide-ranged power inputs, and features dual power support
- The product is capable of operating in a wide range of DC power between 8 and 54VDC. Moreover, dual power supports the product to continue to work even if one of the power supplies fails.
-
Adaptable to a wide range of temperature between -40 to 70°C
- The use of a metal casing with excellent heat dissipation achieves a wide range of temperature (-40 to 70°C) specifications, providing superior environmental resistance and durability, and allowing dependable use in harsh industrial environments.
-

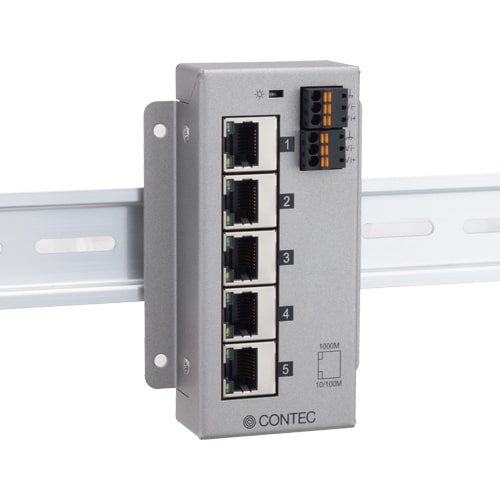

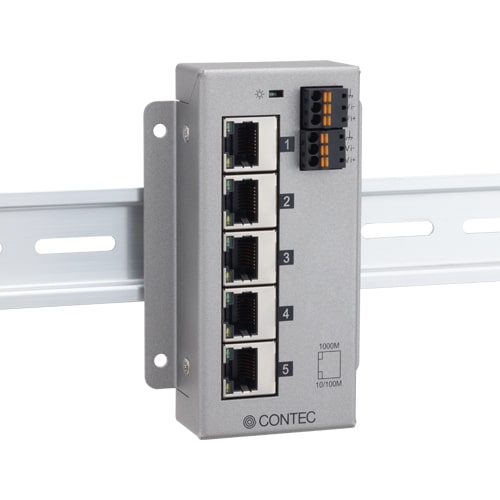

DIN rail mounting or Wall installation
- With the supplied brackets, the product can be set on a 35mm-DIN rail or on the wall.
