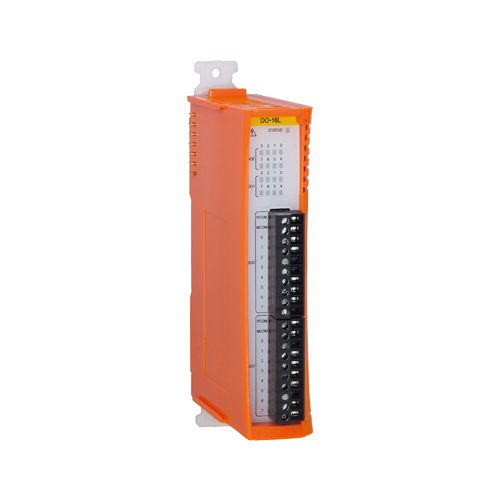

CPS-DO-16L 数字量输出 CONPROSYS系列 I/O模块 16点 (光电隔离 12-24VDC)

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

This product is an extension module with isolated digital Output interface and operates along with the stack type controller of our CONPROSYS series. CPS-DO-16L have the opto-coupler isolated Output16 channels (current sink output) whose response speed is 200µsec or less.

• Opto-coupler isolated Output (supporting current sink output)

  • CPS-DO-16L have the opto-coupler isolated Output16 channels (current sink output) whose response speed is 200μsec or less.
• Output circuits include zener diodes for surge voltage protection

  • Zener diodes are connected to the output circuits to protect against surge voltages. The rated output is 35VDC, 100mA to the maximum per channel.
• Adaptable to a wide range of temperature between -20 and +60°C

  • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
• Installation easy with two pieces of terminal support and DIN rail

  • You can remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product can be not only mounted on DIN rail, but also is removable along the side rails, replacing is simple and easy as well.
• Equipped with the LED for an operation check

  • The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
• No electrolytic capacitor

  • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
