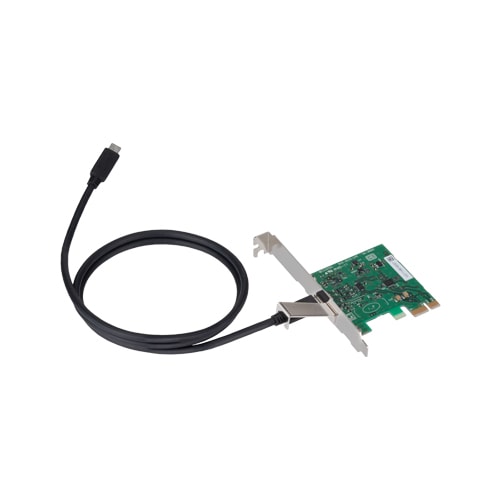

EAD-DE-LPE Expansion Adapter for PCI Express Slot

标准保修1年
延长保修可能

PCI bus (5V / 32bit 33MHz) or PCI Express (x1) bus slot can be added from a PCI Express bus slot of a PC
It is possible to select expansion chassis according to the application
Power of the expansion chassis can be turned on/off in conjunction with the computer where this board mounted

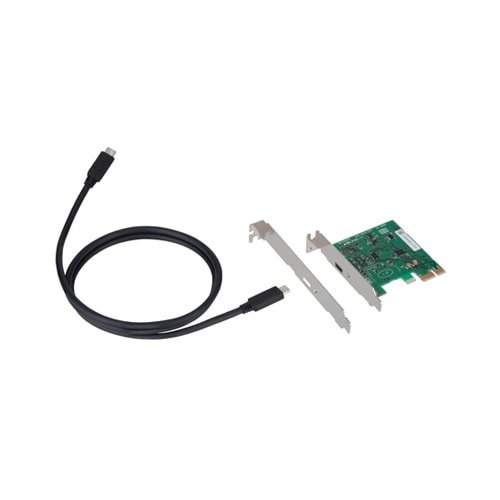

Support for both of Low Profile and standard size slots (interchangeable with a bundled bracket)

*
有关延长保修的详细信息，请与我们联系。

订购信息・选件

产品模式与订货型号

型号	产品型号	适应规格
EAD-DE-LPE	Expansion Adapter for PCI Express Slot

可选件

扩展机箱

項目	項目名
ECH-PCI-DE2-F13A	PCI Express Extension-type PCI Bus Expansion Chassis (long x 13, power supply built-in)
ECH-PCI-DE-F2B	Bus extension type PCI bus expansion chassis (long x 2)
ECH-PCI-DE-F4B	Bus extension type PCI bus expansion chassis (long x 4)
ECH-PCI-DE-H13A	Bus extension type PCI bus expansion chassis (short x 13, power supply built-in)
ECH-PCI-DE-H2B	Bus extension type PCI bus expansion chassis (short x 2)
ECH-PCI-DE-H2C	Bus extension type PCI bus expansion chassis (short x 2)
ECH-PCI-DE-H4B	Bus extension type PCI bus expansion chassis (short x 4)
ECH-PCI-DE-H4D	Cable type PCI Express bus expansion chassis (short x 4)
ECH-PE-DE-H2B	PCI Express bus expansion chassis (short x 2)

电缆

項目	項目名
CB-DE	Cable for PCI Express

延长保修服务

項目	項目名
ESP-F5	Extended warranty service package (5 years service course) (Japan only)
ESP-S1	Extended warranty service package (Extension one year) (Japan only)
