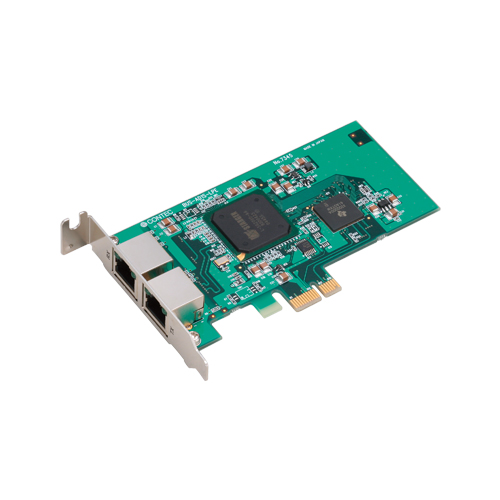

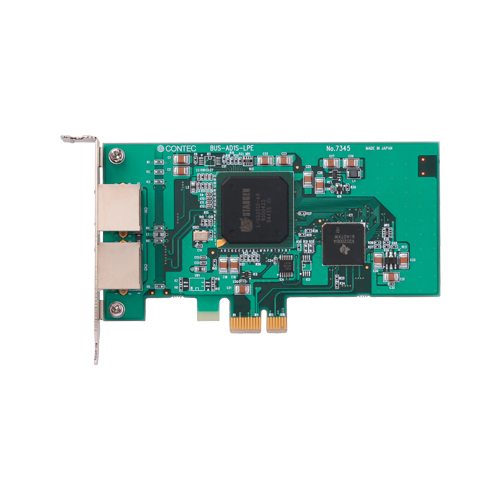

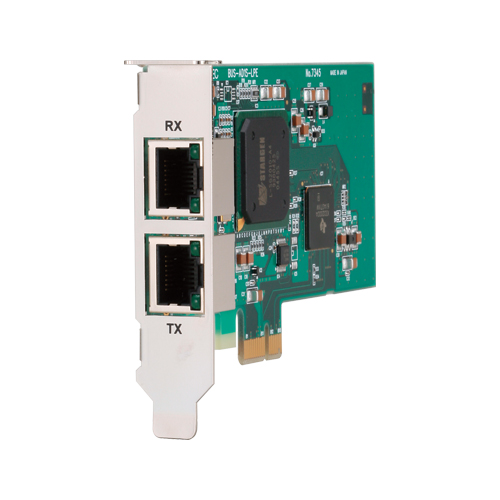

EAD-SF-LPE StarFabric conformity PCI Bus Expansion Adapter for Low Profile PCI Express PC-Slot

A PCI slot (5V/32bit 33MHz) can be added if the PCI Express slot on the main unit of a PC is used to connect an optional PCI bus expansion chassis. No special device driver is required for the PCI board mounted on the PCI bus expansion chassis.

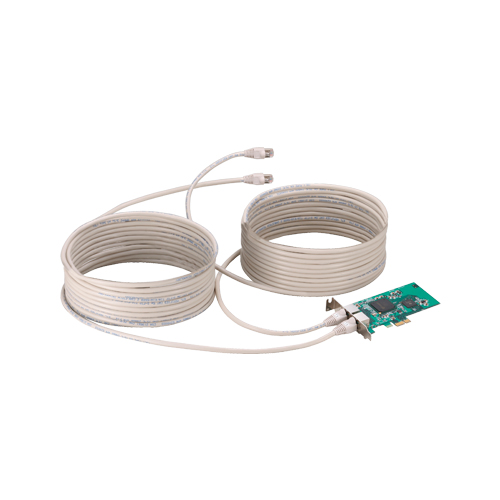

A noise-resistant STP category 5e cable (12m) bundled. The PCI bus expansion chassis can be installed up to 12 meters away from the PC's main unit.
Only two LAN cables are required to link the PC to the power-ON/OFF functionality.
A suitable PCI bus expansion chassis can be selected, according to the number of slots and board size required.
Supporting both of Low Profile and standard PCI slots (exchangeable with the bundled bracket).

订购信息・选件

型号	产品型号	适应规格
EAD-SF-LPE [停产商品]	[修理承接期限: 2025年5月20日] StarFabric conformity PCI Bus Expansion Adapter for Low Profile PCI Express PC-Slot

項目	項目名
ECH(PCI)SF-F13A	StarFabric conformity PCI Bus Expansion Chassis Long x 13Slots with built-in power supply
ECH(PCI)SF-F2B	StarFabric conformity PCI Bus Expansion Chassis Long x 2Slots with AC adaptor
ECH(PCI)SF-H13A	StarFabric conformity PCI Bus Expansion Chassis Short x 13Slots with built-in power supply
ECH(PCI)SF-H2B	StarFabric conformity PCI Bus Expansion Chassis Short x 2Slots with AC adaptor
ECH(PCI)SF-H4A	StarFabric conformity PCI Bus Expansion Chassis Short x 4Slots with built-in power supply
ECH(PCI)SF-H4B	StarFabric conformity PCI Bus Expansion Chassis Short x 4Slots with AC adaptor
ECH(PCI)SF-H7A	StarFabric conformity PCI Bus Expansion Chassis Short x 7Slots with built-in power supply
ECH-PCI-SF2-F7A	PCI Bus Expansion Chassis Long size, 7Slots
ECH-PCI-SF2-H4A	PCI Bus Expansion Chassis Short size, 4Slots
ECH-PCI-SF2-H7A	PCI Bus Expansion Chassis Short size, 7Slots

項目	項目名
ESP-F5	Extended warranty service package (5 years service course) (Japan only)
ESP-S1	Extended warranty service package (Extension one year) (Japan only)
